Thermal Observation with a 35 mm F1.0 Lens

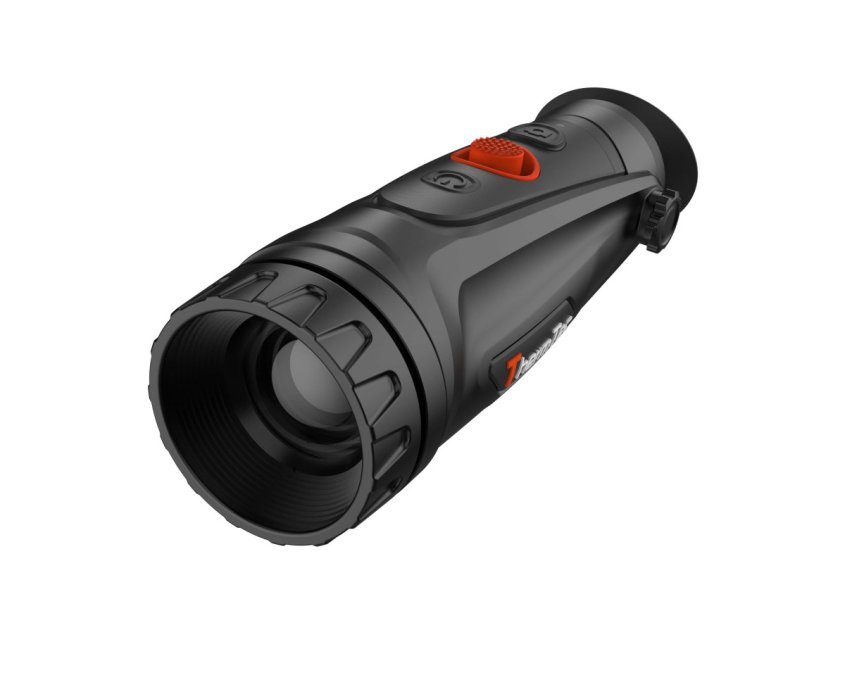

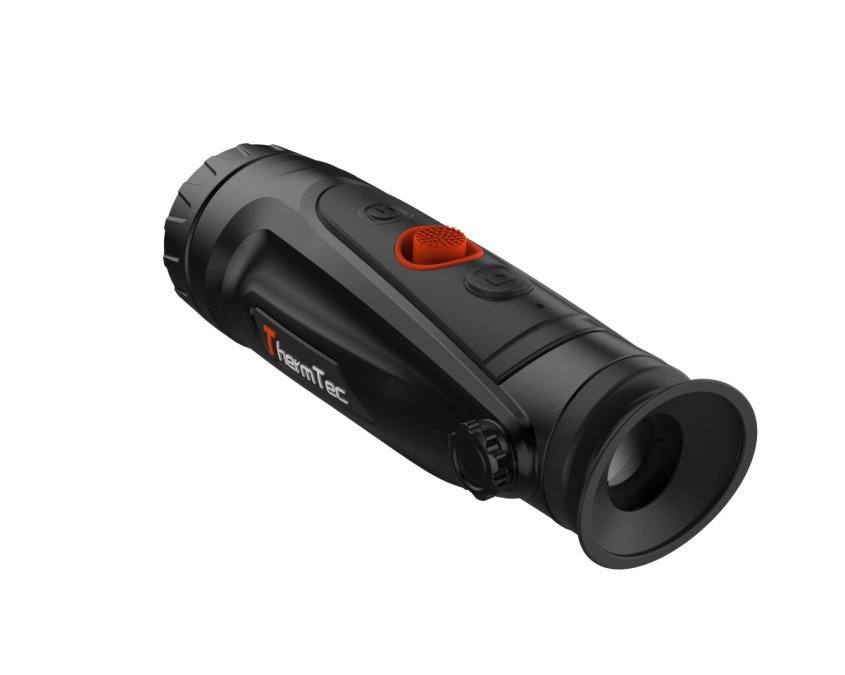

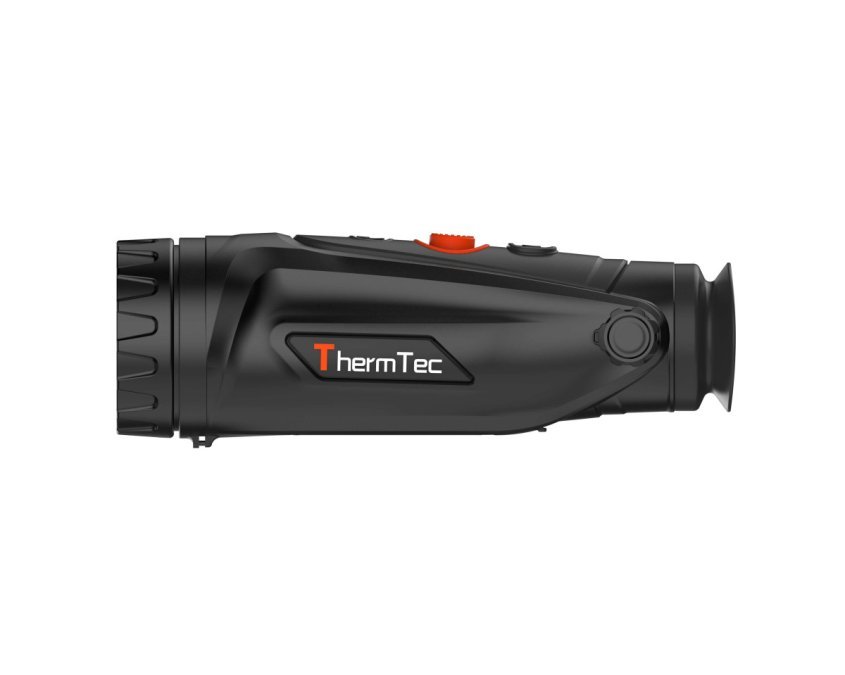

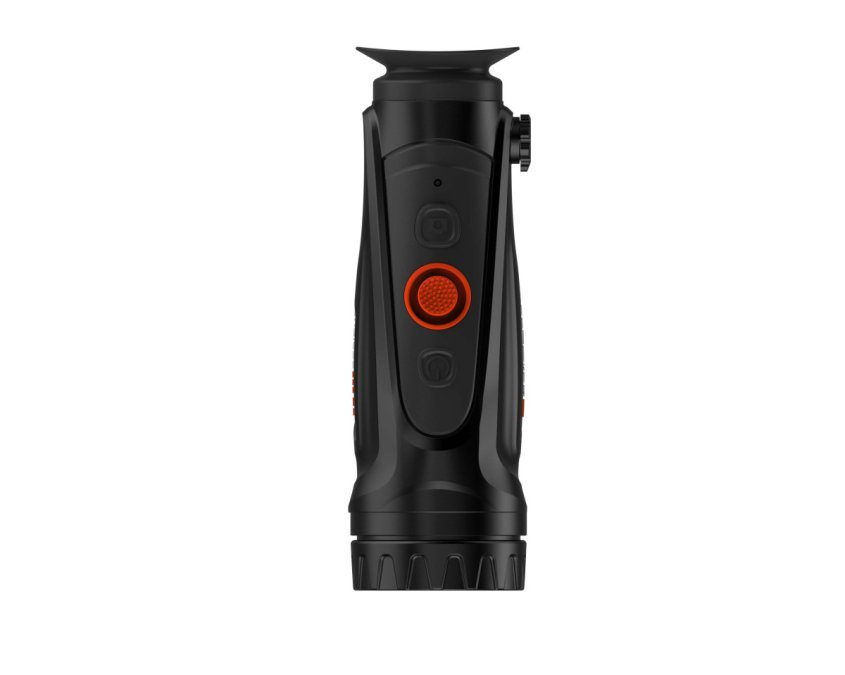

The ThermTec Cyclops 335 SE is a handheld thermal imaging monocular for observation, night hunting, rescue operations, hiking and travel. Its 35 mm F1.0 objective lens works with a 384 x 288 thermal sensor to provide a focused combination of thermal detail, reach and portable one-handed operation.
The device starts within three seconds and uses quiet button controls with an intuitive interface, helping you move from carrying to observation without a complicated setup.
384 x 288 Thermal Imaging System
The uncooled microbolometer has a 384 x 288 resolution, 12 micrometre pixel pitch, 20 mK NETD at 300 K and an 8-14 micrometre spectral range. A 50 Hz frame rate supports smooth viewing when scanning or following movement.
Six colour palettes and Forest, Target and Outline image modes let you adapt the presentation to the scene. Automatic or manual calibration, Picture-in-Picture and heat tracking provide additional control over how thermal information is displayed.
Magnification and AI-Assisted Distance Measurement
The 35 mm F1.0 lens provides 3.3x magnification, supported by 1-4x continuous digital zoom. The field of view is 7.5 x 5.6 degrees, equivalent to 13.2 x 9.9 m at 100 m.
The supplied manual lists a detection range of up to 1,800 m for a 1.8 m human target in its comparison chart. Built-in AI-assisted distance measurement is designed to estimate distance to observed objects without adding a separate ranging unit.
AMOLED Viewing, Recording and App Control
A 0.39-inch AMOLED display with a 1024 x 768 resolution presents the thermal image through a 40 mm eye relief and 6 mm exit pupil. Dioptre adjustment of plus or minus 5 D helps users tune the eyepiece to their vision.
The Cyclops 335 SE supports photo and video recording, on-device playback and OSD recording. Real-time notifications and hotspot connectivity provide access to app-based remote control. Multiple interface languages are supported.
16-Hour Power and Field-Ready Construction
The internal rechargeable lithium-ion battery uses two 18650 cells and provides up to 16 hours of operation. The battery is not user replaceable. The Type-C connection supports battery charging and data transfer using the supplied USB cable.
The 522 g body measures 196.4 x 63.8 x 64.1 mm and carries an IP67 protection rating. Its stated operating temperature range is -20°C to +50°C.
Specifications
| Specification |
Details |
| Brand |
ThermTec |
| Model |
Cyclops 335 SE |
| Product type |
Thermal imaging monocular |
| Detector |
Uncooled microbolometer |
| Thermal resolution |
384 x 288 |
| Pixel pitch |
12 micrometres |
| NETD |
20 mK at 300 K |
| Spectral range |
8-14 micrometres |
| Frame rate |
50 Hz |
| Detection range |
Up to 1,800 m for a 1.8 m human target, as shown in the official manual |
| Objective lens |
35 mm F1.0 |
| Field of view |
7.5 x 5.6 degrees |
| Field of view at 100 m |
13.2 x 9.9 m |
| Magnification |
3.3x |
| Digital zoom |
1-4x continuous zoom |
| Eye relief |
40 mm |
| Exit pupil |
6 mm |
| Dioptre adjustment |
Plus or minus 5 D |
| Display |
0.39-inch AMOLED |
| Display resolution |
1024 x 768 |
| Colour palettes |
6 |
| Image modes |
Forest, Target and Outline |
| Calibration |
Automatic or manual |
| Image functions |
Picture-in-Picture and heat tracking |
| Distance measurement |
AI-assisted distance measurement |
| Media functions |
Photo and video recording and playback; OSD recording |
| Connectivity |
Device hotspot with app remote control and real-time notifications |
| Battery |
Internal rechargeable lithium-ion battery, two 18650 cells; not user replaceable |
| Battery life |
Up to 16 hours |
| Interface |
Type-C for charging and data transfer |
| Protection rating |
IP67 |
| Operating temperature |
-20°C to +50°C |
| Weight |
522 g |
| Dimensions |
196.4 x 63.8 x 64.1 mm |
Charging, Use and Care
- Fully charge the battery before first use. Lift the USB-port cover, connect the supplied cable to the device, then connect the other end to a USB power source.
- The internal battery is not user replaceable.
- Keep the USB cover tightly closed when the device is used in a wet environment.
- Do not aim the lens directly at the sun or another high-temperature light source.
- Use the device only within its stated operating temperature range of -20°C to +50°C.
- Charge the battery once every three months during long periods of non-use.
- Protect the device from hard objects, and do not disassemble or modify it.
Package Contents
- 1 x ThermTec Cyclops 335 SE thermal imaging monocular
- 2 x lanyards
- 1 x USB cable
- 1 x lens cloth
- 1 x user manual
Frequently Asked Questions
What is the thermal sensor resolution?
The Cyclops 335 SE uses a 384 x 288 uncooled microbolometer with a 12 micrometre pixel pitch and a 50 Hz frame rate.
What is the stated detection range?
The official manual lists up to 1,800 m for a 1.8 m human target in its detection-range comparison chart.
What magnification does it provide?
It provides 3.3x magnification with 1-4x continuous digital zoom.
Can the Cyclops 335 SE record photos and video?
Yes. It supports photo and video recording, OSD recording and on-device playback.
Can it connect to an app?
Yes. The device hotspot supports app remote control, and the specification also lists real-time notifications.
How long does the battery operate?
The internal rechargeable lithium-ion battery is rated for up to 16 hours of operation. It uses two internal 18650 cells and is not user replaceable.
