Open-View Thermal Observation for Birdwatching

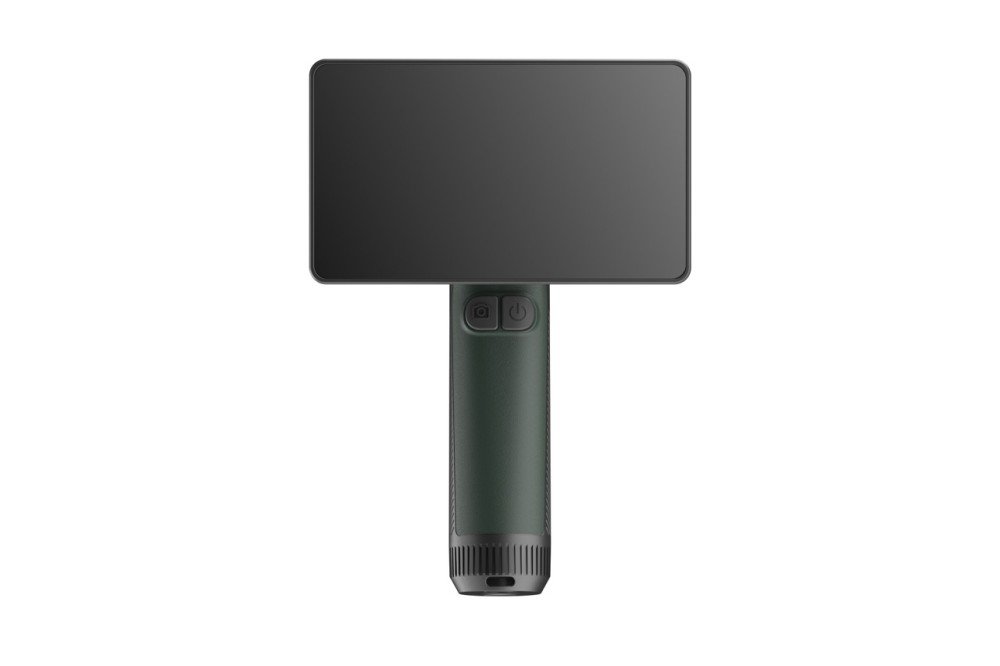

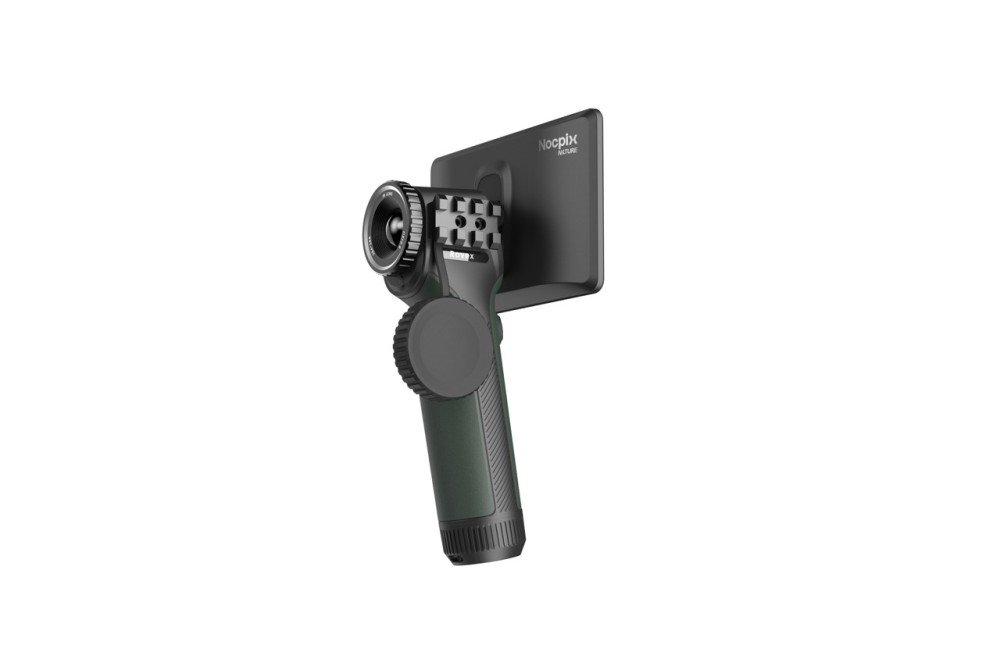

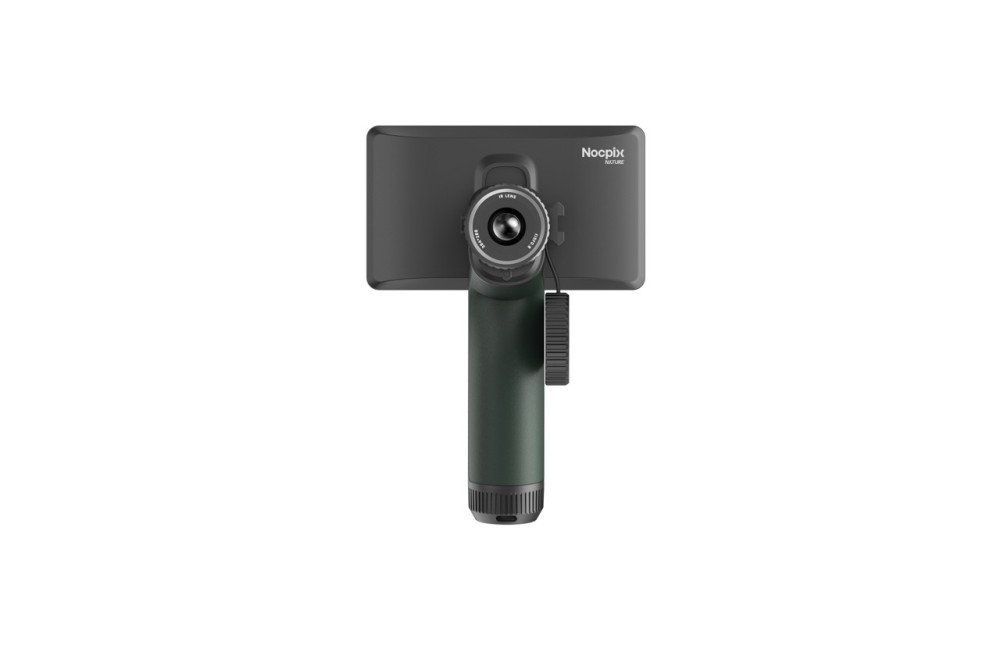

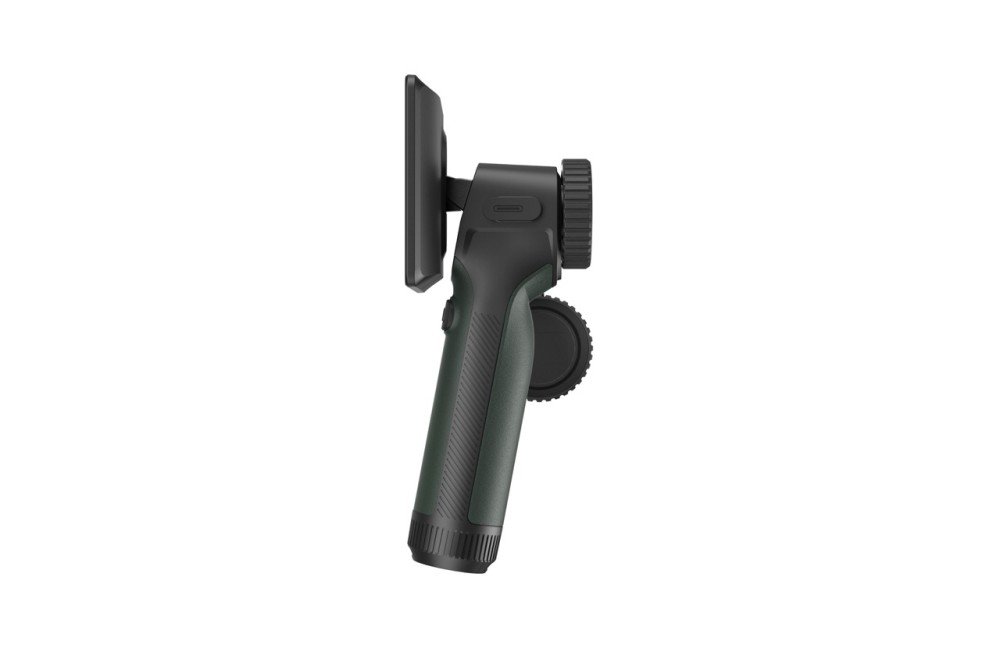

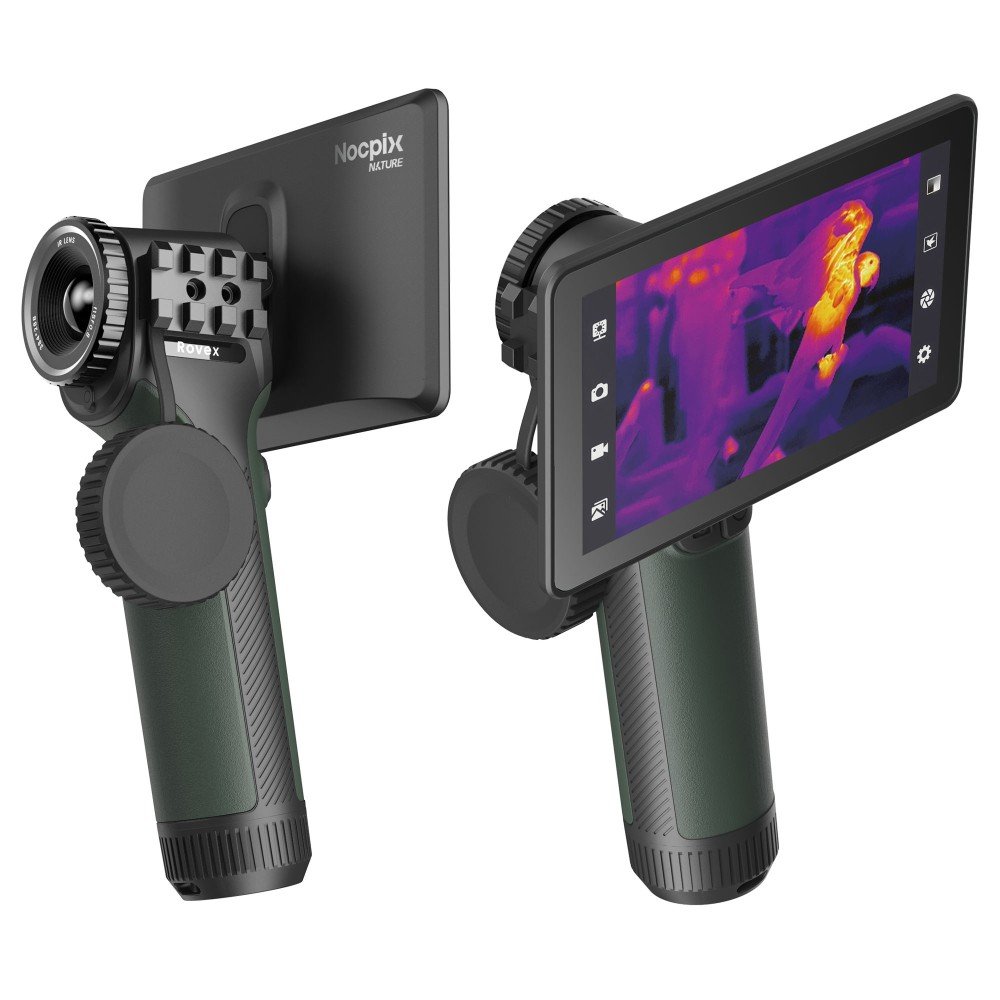

The Nocpix Rovex is a handheld thermal imaging camera designed to display heat signatures during nature observation and civil use. Its open-view format centres on a 5-inch 1280 x 720 LCD touchscreen, allowing users to scan without looking through a small eyepiece and to share the thermal view with companions.
The camera is intended for birdwatching, wildlife observation and outdoor exploration in daylight or darkness, including low-light and visually complex environments where branches, reeds, grass or other cover can make visual searching difficult.
384x288 Thermal Sensor and Wide F0.8 Optics
A 384 x 288 thermal sensor with 12 micrometre pixel pitch, NETD at or below 25 mK and a 50 Hz frame rate works with a 15 mm F0.8 objective lens. The 17.5 x 13.1 degree field of view supports broad scanning across woodland, reeds, grass and other visually complex habitats.
For a 0.2 x 0.2 m target at P(n)=99%, the stated detection distance is 90 m. The lens uses manual focus, while 1x to 4x pinch-to-zoom provides digital enlargement on the touchscreen.
R+ Imaging and Smart Bird Tracking
R+ Super-Resolution processes the thermal image in real time, while smart image denoising and smart target highlighting help make heat sources easier to distinguish within the scene. Smart tracking can mark likely bird heat sources with colour-coded frames.
Three imaging modes adapt the presentation for different conditions: Standard Mode for general nature observation, Birding Mode for highlighting warmer targets against cooler backgrounds, and Rain & Fog Mode for reducing thermal scattering noise in difficult weather.
Recording, Storage and App Connection
The touchscreen provides direct access to brightness, image capture, video recording, palettes, scene modes and settings. Four thermal palettes are available: White-hot, Black-hot, Red-hot and Pseudocolour.
Photos and videos can be stored in the 64 GB internal memory. Wi-Fi and the NocpixRec app support device control plus the download and sharing of captured images and videos.
Compact Design, IP66 Protection and Replaceable Power
The compact body measures 135 x 70 x 182 mm and weighs under 290 g without the external battery. It carries an IP66 rating and a stated one-metre drop-resistance specification.
Power comes from a replaceable 21700 lithium-ion battery, with a stated maximum operating time of four hours at 22 degrees Celsius. Charge through the USB Type-C connection using a standard 5 V DC/2 A adaptor; fast charging is not supported.
Specifications
| Specification |
Details |
| Brand |
Nocpix |
| Model |
Rovex |
| Product type |
Handheld thermal imaging camera |
| Intended use |
Nature observation and civil use |
| Thermal sensor |
384 x 288 pixels |
| Pixel pitch |
12 micrometres |
| Thermal sensitivity |
NETD at or below 25 mK |
| Frame rate |
50 Hz |
| Objective lens |
15 mm, F0.8 |
| Field of view |
17.5 x 13.1 degrees |
| Display |
5-inch 1280 x 720 LCD touchscreen |
| Digital zoom |
1x to 4x pinch-to-zoom |
| Detection distance |
90 m / 98 yd for a 0.2 x 0.2 m target at P(n)=99% |
| Imaging modes |
Standard, Birding, Rain & Fog |
| Colour palettes |
White-hot, Black-hot, Red-hot, Pseudocolour |
| Recording |
Thermal photos and videos |
| Internal storage |
64 GB |
| Wireless connection |
Wi-Fi and NocpixRec app support |
| Battery |
Replaceable 21700 lithium-ion battery |
| Maximum operation time |
4 hours at 22 degrees Celsius |
| Charging |
USB Type-C, standard 5 V DC/2 A adaptor |
| IP rating |
IP66 |
| Drop resistance |
1 m |
| Operating temperature |
-25 to +45 degrees Celsius |
| Storage temperature |
-30 to +60 degrees Celsius |
| Dimensions |
135 x 70 x 182 mm |
| Weight |
Under 290 g without battery |
Use and Care
- Before use, check the Rovex camera for visible damage, confirm that it displays a clear image and verify that the thermal settings are correct.
- Fully charge the supplied 21700 battery before first use. Fit it with the positive terminal facing inward and never reverse the polarity.
- Charge through USB Type-C with a standard 5 V DC/2 A adaptor. Fast charging is not supported, and the charging temperature must remain between 0 and 45 degrees Celsius.
- Rotate the lens focus ring until the thermal image is clear, then select the palette and imaging mode suited to the observation conditions.
- Never point the lens directly at intense heat sources such as the sun or laser equipment, as this can damage internal components.
- Replace the lens cap when the camera is not in use. Store the device in a dry, well-ventilated place and remove the battery for prolonged storage.
- Keep the device and batteries away from small children and follow local rules for battery and electronic-equipment disposal.
Package Contents
- Nocpix Rovex Handheld Thermal Imaging Camera
- 1 x 21700 Lithium-Ion Battery
- Quick Start Guide
- Lens Burn Warning Card
Frequently Asked Questions
What is the Nocpix Rovex designed for?
The Rovex is designed to display heat signatures during nature observation and civil use, including birdwatching, wildlife observation and outdoor exploration.
Can the Rovex be used during the day and at night?
Yes. The thermal camera is designed for daytime and night-time observation, with Standard, Birding, and Rain & Fog modes for different viewing conditions.
What display does the Rovex use?
It uses a 5-inch 1280 x 720 LCD touchscreen with an open-view format for direct and shared viewing.
What is the stated detection distance?
The stated detection distance is 90 m or 98 yd for a 0.2 x 0.2 m target at P(n)=99%.
Can the Rovex record and share images?
Yes. It supports thermal photo and video recording with 64 GB of internal storage. Wi-Fi and the NocpixRec app support control, download and sharing.
What battery does the Rovex use?
It uses a replaceable 21700 lithium-ion battery and has a stated maximum operating time of four hours at 22 degrees Celsius.
