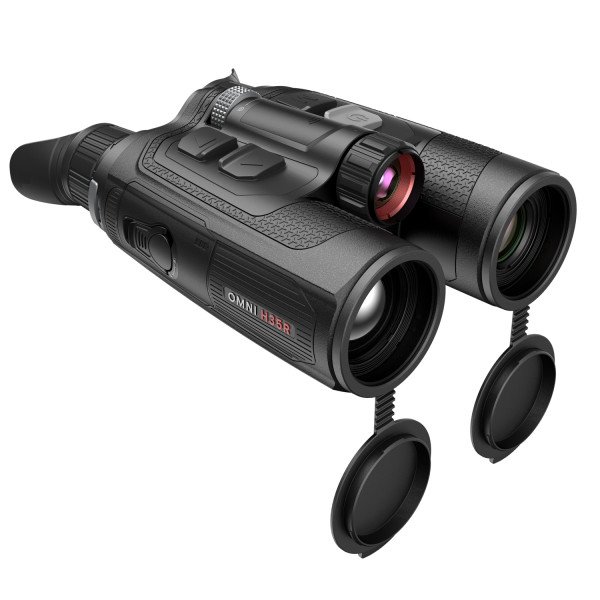

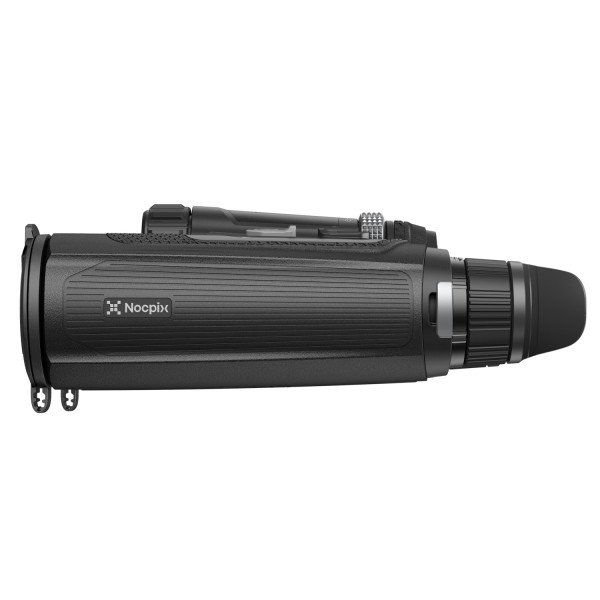

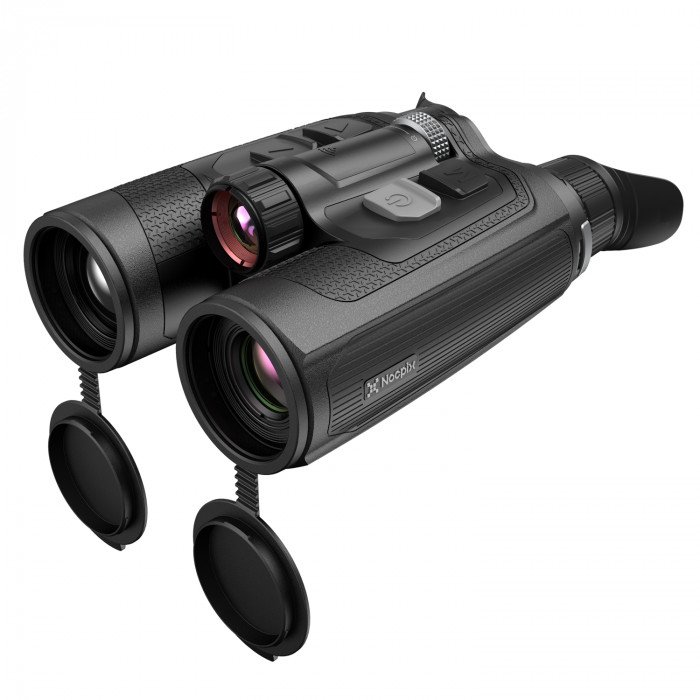

8K Digital and 640 Thermal Imaging
The OMNI H35R combines an 8K digital imaging channel with a 640 x 512 thermal channel. The thermal sensor uses a 12 micrometre pixel pitch, NETD of 15 mK or lower and a 50 Hz frame rate to reveal temperature differences, while the digital channel provides detailed colour observation through daylight, twilight and low-light conditions. A dedicated button switches directly between the two channels.

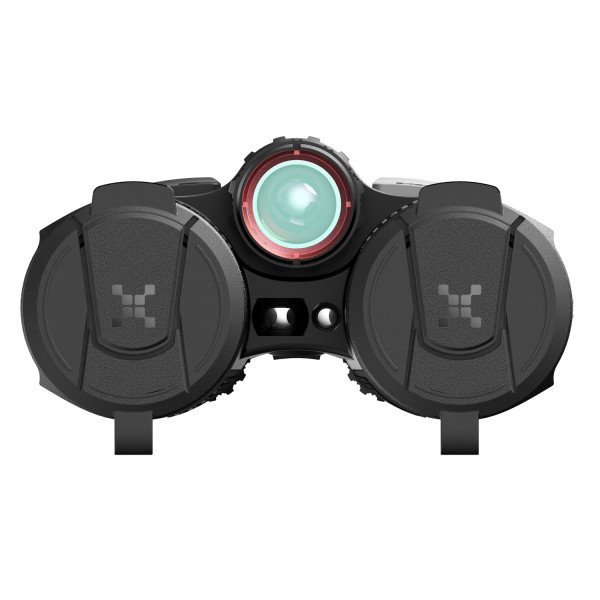

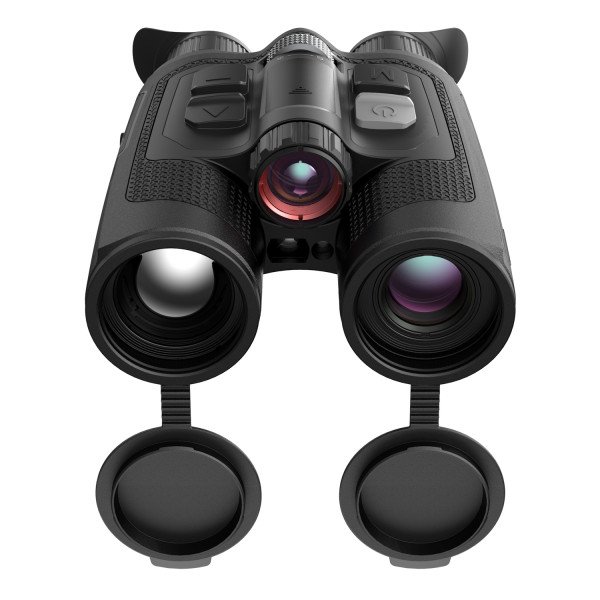

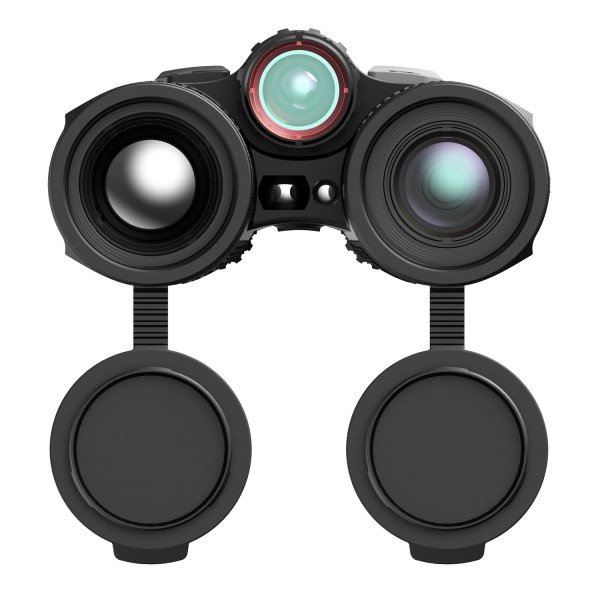

Separate Thermal and Digital Optics
The thermal channel uses a 35 mm F0.9 objective lens with 2-16x magnification and a field of view of 13.8 x 10.4 degrees, equivalent to 24.3 x 18.2 m at 100 m. The digital channel uses a 50 mm F1.8 lens with 3-18x magnification and an 8.8 x 6.6 degree field of view, equivalent to 15.4 x 11.5 m at 100 m. Daylight, Twilight and Low-Light processing modes allow the digital image to be adjusted for different ambient-light conditions.

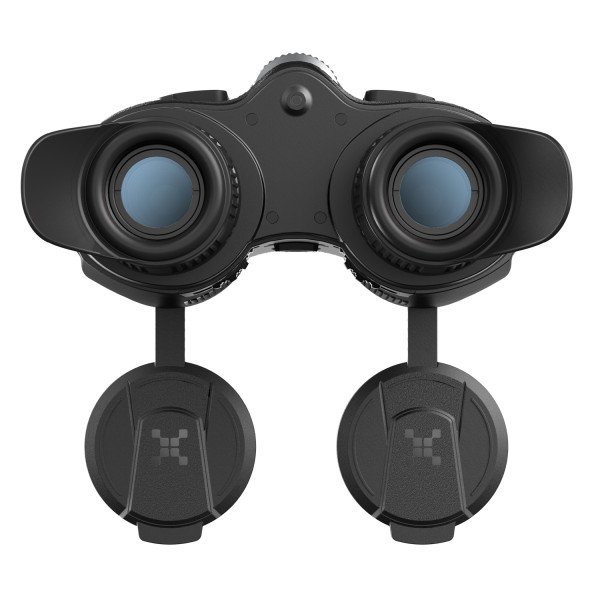

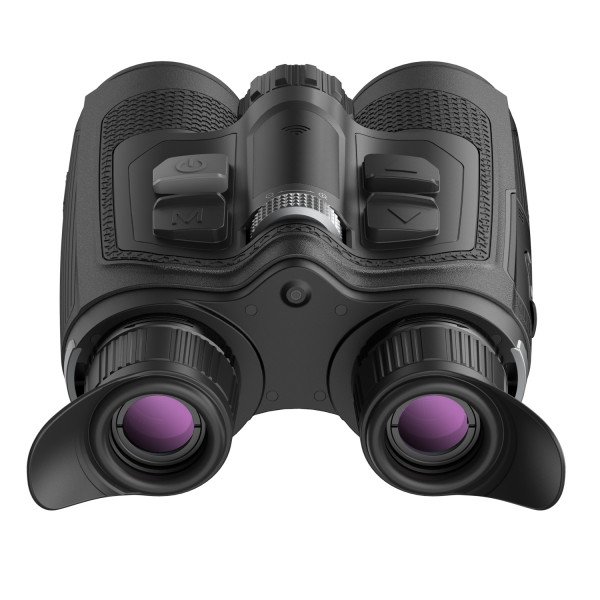

Stable Comfortable Binocular Viewing

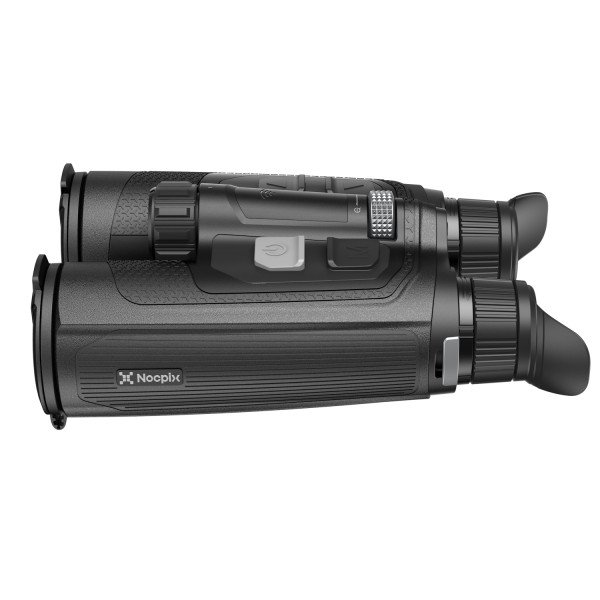

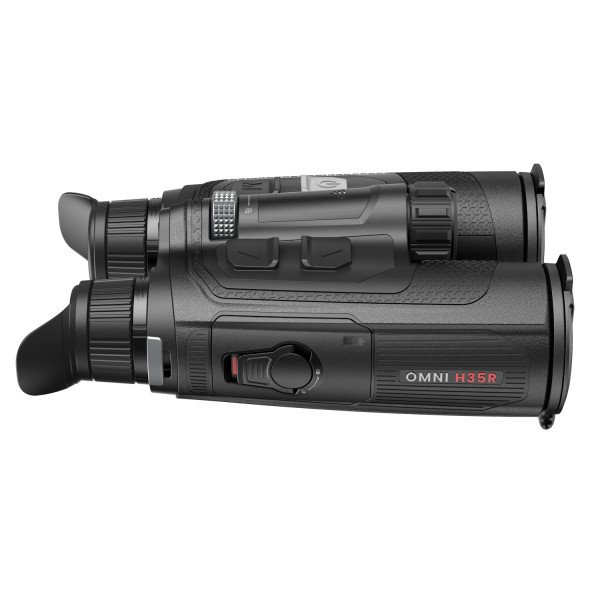

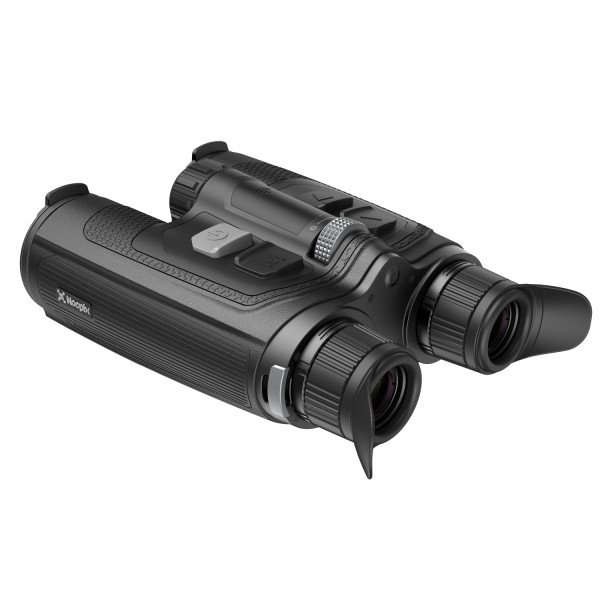

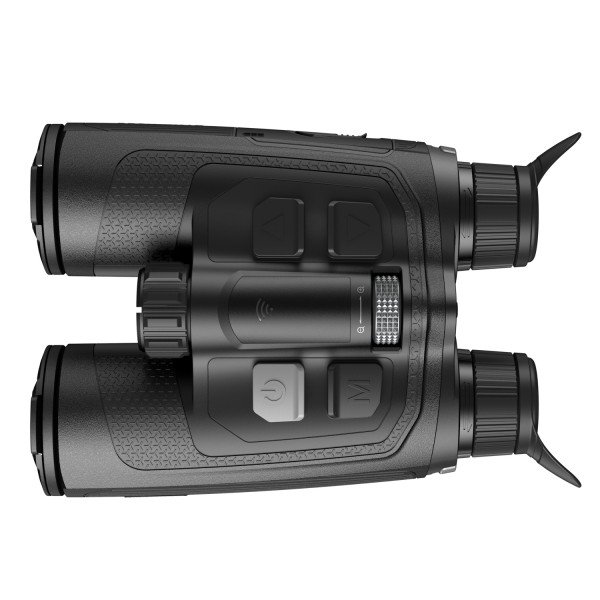

Electronic image stabilisation operates from 1x magnification to reduce the effect of handheld movement. The zoom control supports minimum 0.5x increments for smaller changes in magnification. A 0.5-inch AMOLED display and 12 mm exit pupil support natural two-eye viewing, while the bottom-mounted focus ring and four-button control layout keep key adjustments within reach.
1000 m LRF Ballistic Calculation and N-Link
The integrated laser rangefinder provides single or continuous distance measurement up to 1000 m. Measured distance can be used with the ballistic calculation function to provide reference data during observation. N-Link can share live digital imagery and ranging data with compatible Nocpix devices. Any ballistic inputs and device connections must be configured and verified before use.
Day-to-Night IR Observation
Detachable 850 nm and 940 nm IR illuminator options support the digital channel in darkness. The 850 nm option prioritises brightness and longer-range visibility, while the 940 nm option prioritises lower visible glow with a shorter effective range. The illuminator heads can be exchanged without tools.
Recording Connectivity and Field Power
The OMNI H35R provides 64 GB of internal storage for photographs and video, with a built-in microphone and onboard gallery. Wi-Fi and Bluetooth-assisted connection support the Nocpix app, while the polarity-free battery compartment accepts protected 18650 batteries in either orientation. Power comes from a built-in battery plus two replaceable 18650 batteries, with stated operation of up to 7.5 hours at 22 degrees C depending on feature use. The magnesium-alloy housing, PVC grip, IP67 protection and built-in 1/4-20 UNC tripod connection support handheld or tripod-mounted observation.
Technical Specifications
| Specification |
Value |
| Brand |
Nocpix |
| Model |
OMNI H35R |
| Product type |
8K multispectral thermal binoculars with integrated laser rangefinder |
| Digital sensor |
8K, 8192 x 6144 |
| Digital objective lens |
50 mm F1.8 |
| Digital magnification |
3-18x |
| Digital field of view |
8.8 x 6.6 degrees / 15.4 x 11.5 m at 100 m |
| Digital image modes |
Daylight, Twilight and Low-Light |
| Thermal sensor |
640 x 512, 12 micrometre |
| Thermal sensitivity |
NETD 15 mK or lower |
| Thermal frame rate |
50 Hz |
| Thermal objective lens |
35 mm F0.9 |
| Thermal magnification |
2-16x |
| Thermal field of view |
13.8 x 10.4 degrees / 24.3 x 18.2 m at 100 m |
| Thermal detection range |
Up to 1818 m |
| Display |
0.5-inch AMOLED |
| Exit pupil |
12 mm |
| Zoom increments |
Minimum 0.5x |
| Image stabilisation |
Electronic image stabilisation from 1x |
| Laser rangefinding range |
Up to 1000 m |
| Rangefinding modes |
Single and continuous |
| Ballistic function |
Ballistic calculation |
| Infrared illumination options |
Detachable 850 nm and 940 nm |
| Focus control |
Bottom-mounted focus ring |
| Storage |
64 GB |
| Recording |
Photo and video with microphone and onboard gallery |
| Connectivity |
Wi-Fi, Bluetooth-assisted app connection and N-Link |
| Power system |
Built-in battery plus two replaceable 18650 batteries |
| Operating time |
Up to 7.5 hours at 22 degrees C, depending on feature use |
| Body |
Magnesium alloy with PVC anti-slip grip |
| Water resistance |
IP67 |

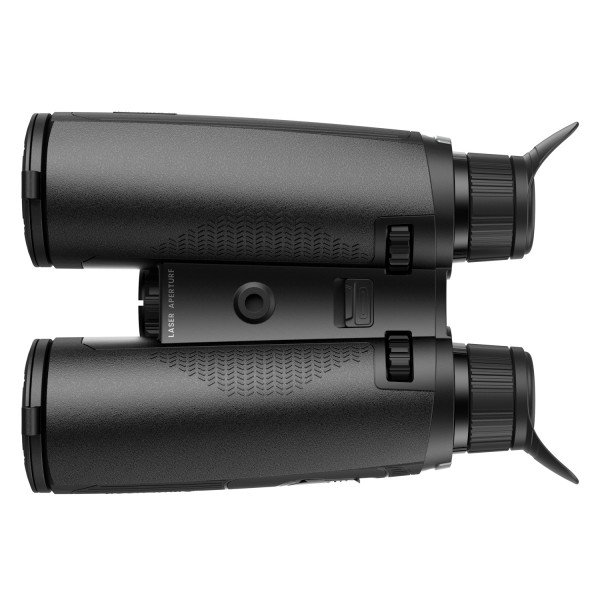

| Tripod connection |
1/4-20 UNC |
Use Setup and Care
- Read the Nocpix OMNI user manual before first use and configure the device before field observation.
- Verify laser rangefinder, ballistic and N-Link settings before relying on displayed distance or reference data.
- Use ranging and ballistic information only as support data; it does not replace safe target identification, a safe backstop or correct judgement.
- Do not look into the laser aperture or direct the laser towards people, vehicles or aircraft. Follow all applicable laser-use, hunting and local regulations.
- Use protected 18650 batteries and suitable charging equipment in accordance with the product manual. Replaceable batteries may be inserted in either orientation.
- Fit or exchange an IR illuminator only as instructed in the manual and avoid looking directly into an active infrared emitter.
- Check the tripod connection before stationary use. Store the binoculars dry and clean optical surfaces only with suitable lens-care materials.
Frequently Asked Questions
What imaging channels does the OMNI H35R provide?
It combines an 8K digital day-and-night channel with a 640 x 512, 12 micrometre thermal channel in one binocular-style device.
What is the thermal magnification range?
The H35R thermal channel provides 2-16x magnification through a 35 mm F0.9 objective lens.
What is the digital magnification range?
The digital channel provides 3-18x magnification through a 50 mm F1.8 objective lens.
How far does the integrated laser rangefinder measure?
The integrated laser rangefinder provides single and continuous ranging up to 1000 m.
What is the difference between the 850 nm and 940 nm IR options?
The 850 nm option prioritises brightness and longer-range visibility. The 940 nm option provides lower visible glow with a shorter effective range.
Can the OMNI H35R record and connect to the Nocpix app?
Yes. It provides 64 GB of storage, photo and video recording, a microphone and an onboard gallery. Wi-Fi and Bluetooth-assisted connection support the Nocpix app, and N-Link shares imagery and ranging data with compatible Nocpix devices.
