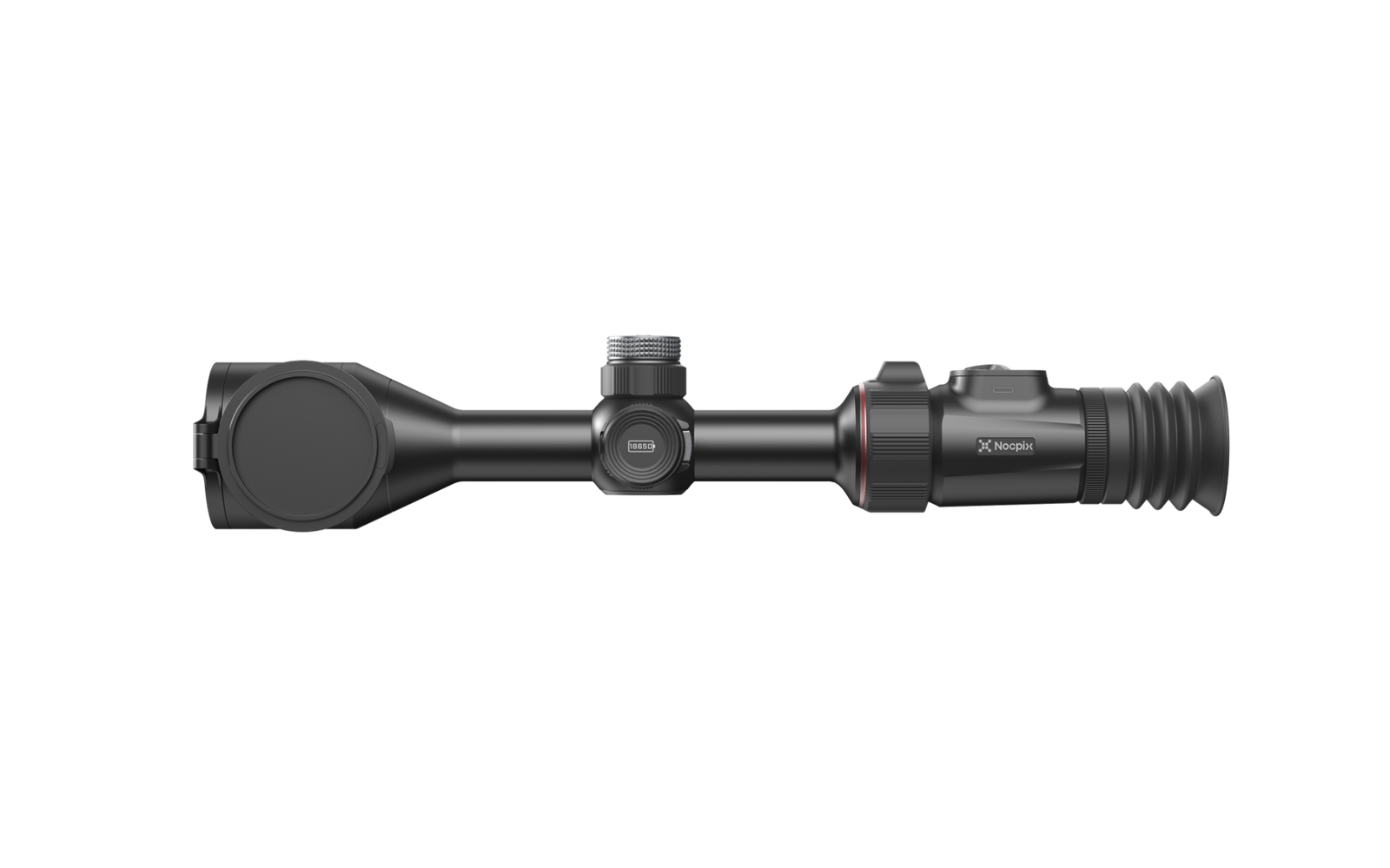

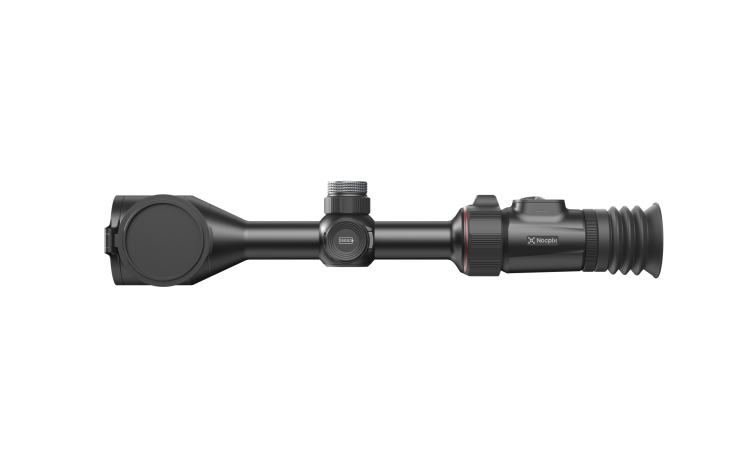

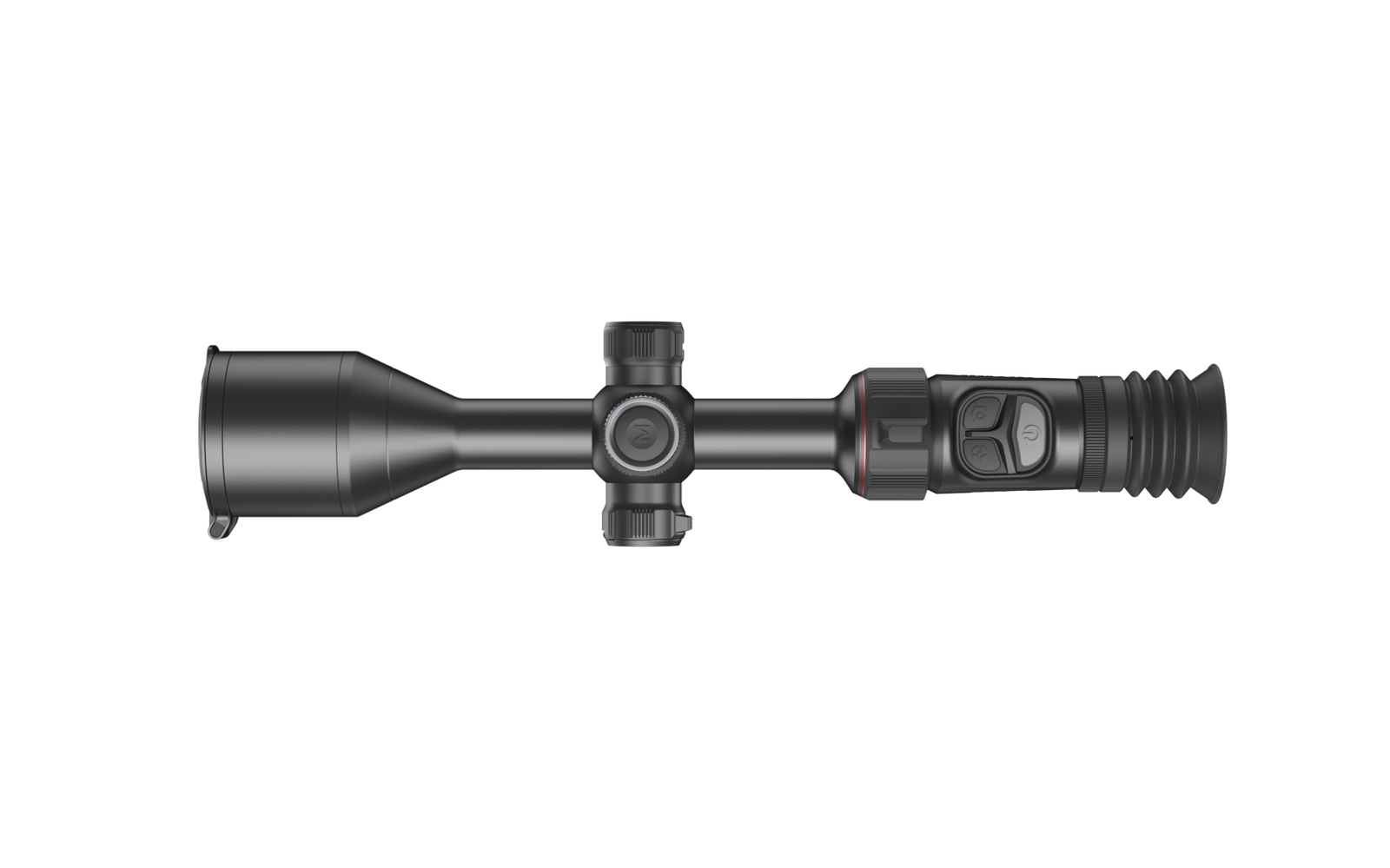

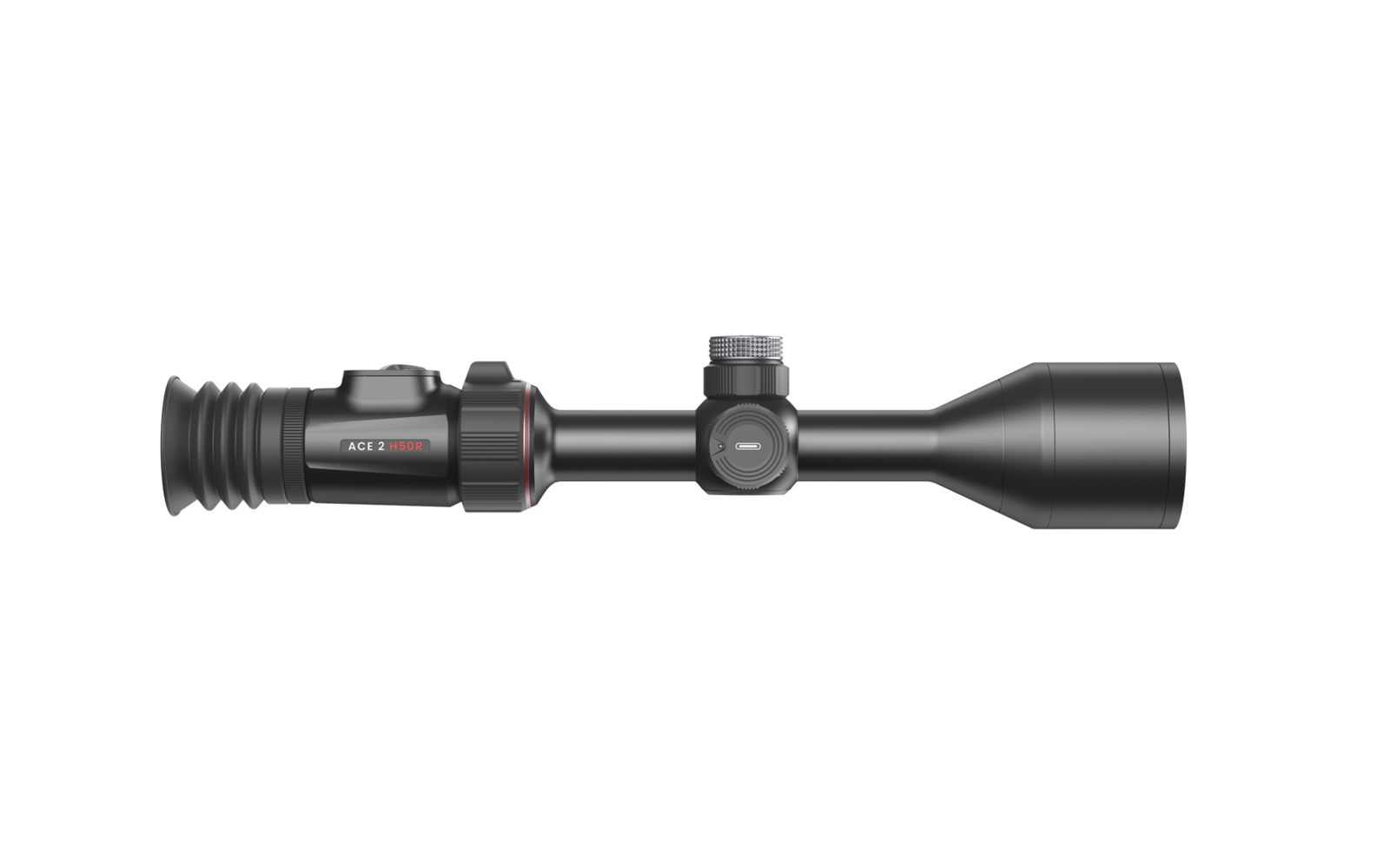

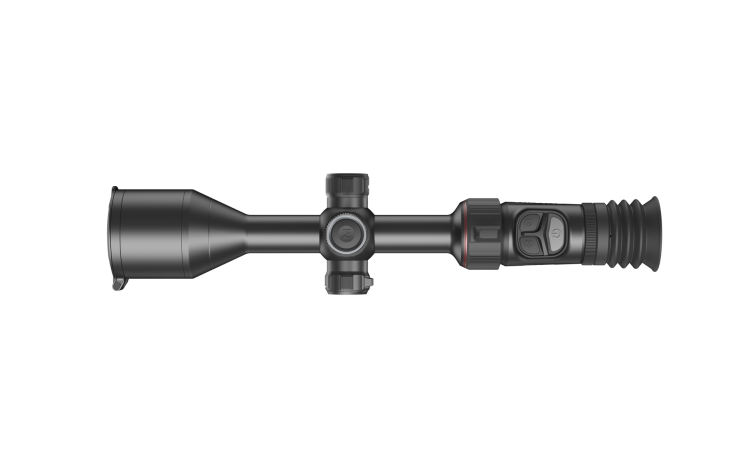

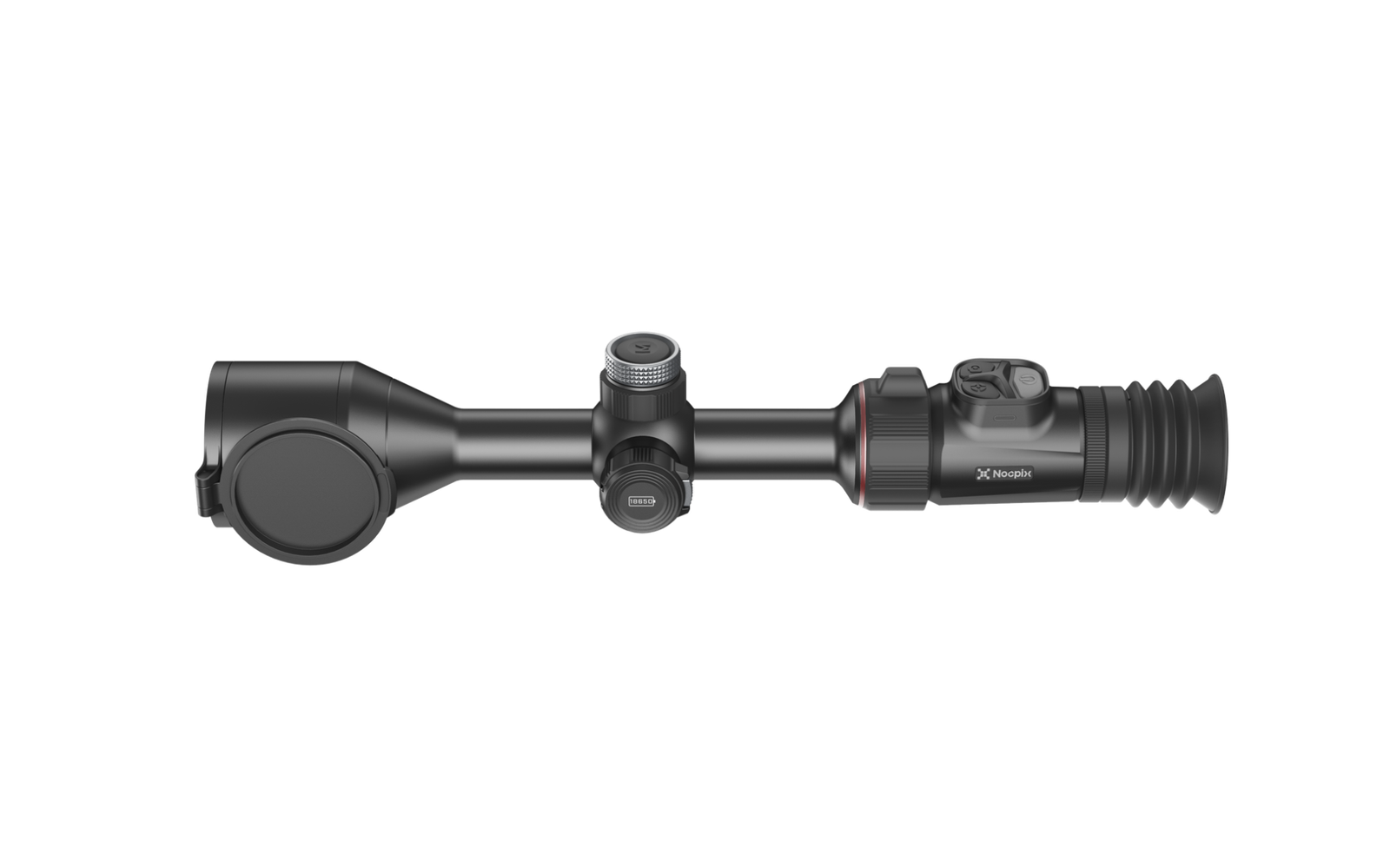

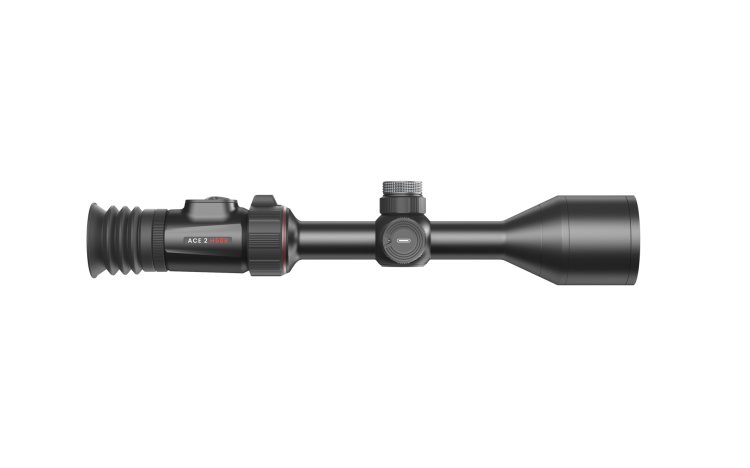

Nocpix ACE 2 H50R 640 Thermal Rifle Scope with 1200 m LRF

640 Thermal Imaging and F0.9 Optics

The ACE 2 H50R uses a 640 x 512, 12 micrometre thermal sensor with NETD of 12 mK or lower. A 50 mm F0.9 objective lens, 60 Hz frame rate and R+ 2.0 image processing support detailed thermal imaging across changing field conditions. The specified field of view is 8.8 x 7.0 degrees, equivalent to 15.4 x 12.3 m at 100 m, and the stated detection range is up to 2600 m.

Ocular Zoom 2.0 and Central Focus

Ocular Zoom 2.0 provides a 3-24x magnification range while maintaining reticle accuracy through the zoom range. The optical design specifies 60 mm eye relief and a 10 mm exit pupil. A central focus wheel places focus control close to the shooting position for direct adjustment.

1200 m LRF and Ballistic Calculation

Integrated LRF 2.0 measures distances up to 1200 m. Ballistic Calculation 2.0 uses ranging and configured ballistic inputs to provide aiming information; the data should be set and verified for the firearm and ammunition in use before field use.

Dual Clarity and Intelligent Tracking

Dual Clarity Mode provides a Motion setting for moving subjects and a Still setting that prioritises fine detail. Intelligent Tracking combines the integrated laser rangefinder with an electronic compass to provide target position information from a measurement.

Magnesium Body Power and Connectivity

The high-strength magnesium alloy body weighs under 1000 g and is specified to withstand recoil energy up to 7000 J. Operating time is up to 8 hours. An external 18650 battery can be installed without distinguishing polarity, and 5G Wi-Fi supports transfer speeds up to 20 MB/s.

Technical Specifications

Installation Use and Care

• Install, zero and operate the scope only in accordance with the Nocpix, mount and firearm manufacturers' instructions.
• Confirm that the scope and mount are secure before each use and recheck zero after mounting changes or significant impact.
• Enter and verify the correct ballistic data for the firearm and ammunition before using Ballistic Calculation 2.0.
• Use rangefinding and ballistic information as support data; it does not replace safe identification, a safe backstop or correct judgement.
• Do not look into the laser aperture or direct the laser towards people, vehicles or aircraft. Follow all applicable firearm, hunting and laser-use rules.
• The external 18650 battery can be installed without distinguishing positive and negative polarity. Use a suitable battery and charger in accordance with the product manual.
• Keep optical surfaces clean with suitable lens-care materials and store the device dry when not in use.

Frequently Asked Questions

What is the thermal sensor resolution?

The ACE 2 H50R uses a 640 x 512, 12 micrometre thermal sensor with NETD of 12 mK or lower.

What magnification range does the ACE 2 H50R provide?

The current Nocpix specification gives a magnification range of 3-24x.

How far does the laser rangefinder measure?

The integrated LRF 2.0 measures up to 1200 m.

Can the ACE 2 be mounted on an air rifle?

Yes. Nocpix confirms that the ACE 2 can be mounted on an air rifle.

Can it be used with .308 Win or .338 Lapua?

Nocpix states that the ACE 2 can be used with .308 Win or .338 Lapua and withstands recoil energy up to 7000 J. Mounting and use must still follow the firearm, mount and scope instructions.

Can Ocular Hybrid Zoom be disabled?

Yes. Hybrid Zoom can be turned off in the Custom menu to use digital zoom only.
