Compact Thermal Imaging for Flexible Setups

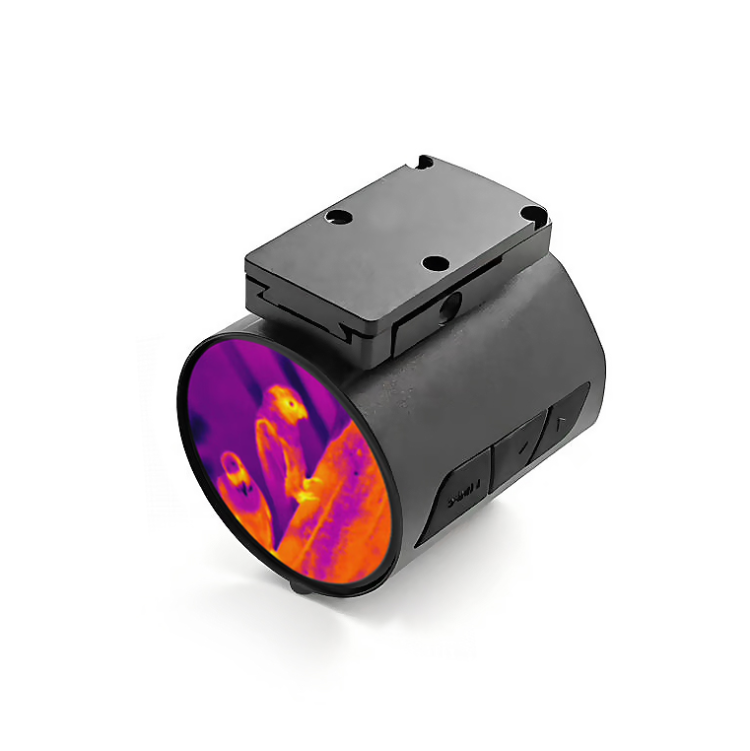

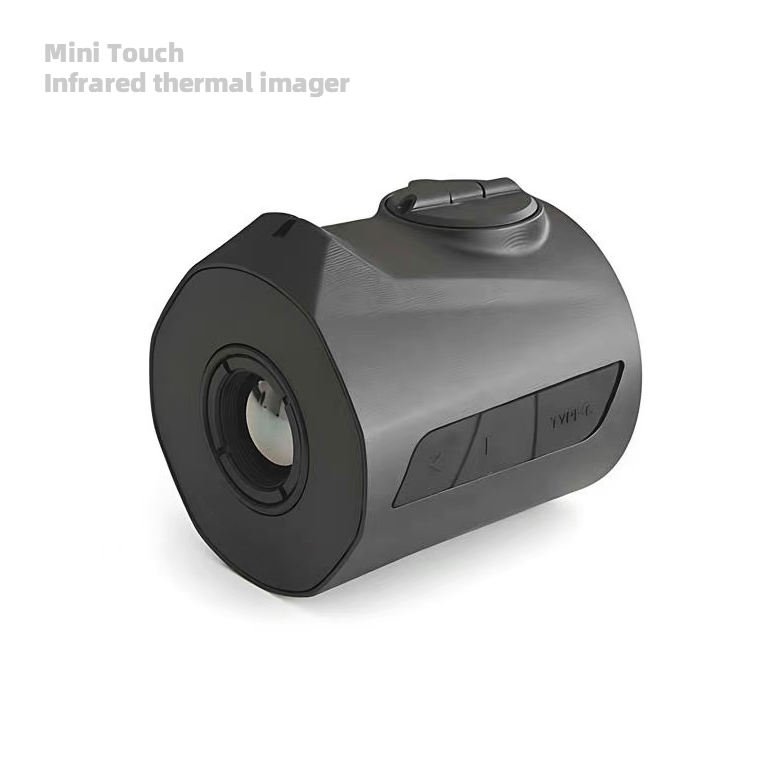

The Mini Touch S213T is a compact infrared thermal imager designed around a three-in-one concept for search, sighting and helmet-mounted configurations. Its 111 g body combines thermal detection, an OLED touch display, physical controls and recording functions in a device measuring 52 x 48 x 51 mm.

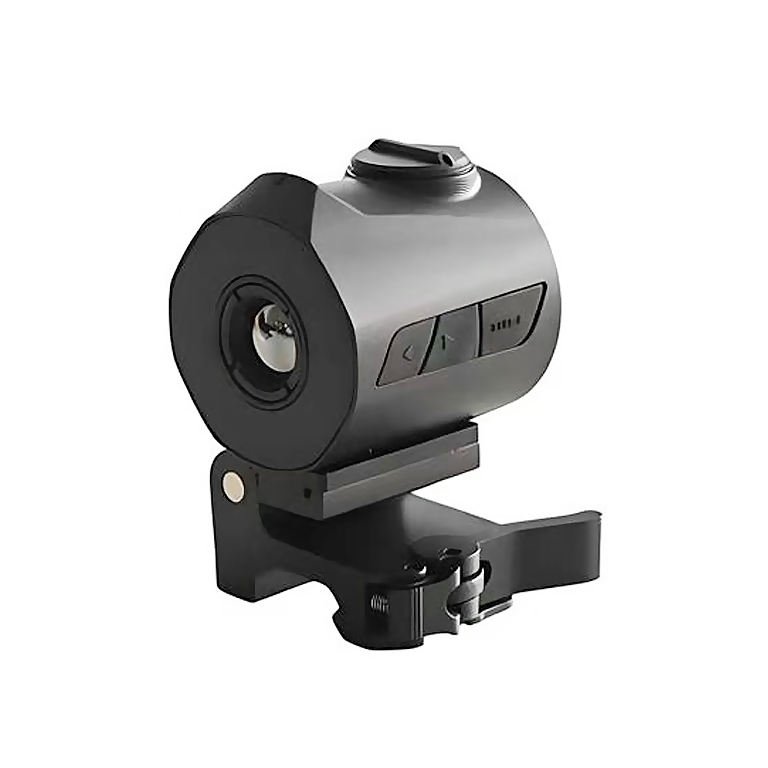

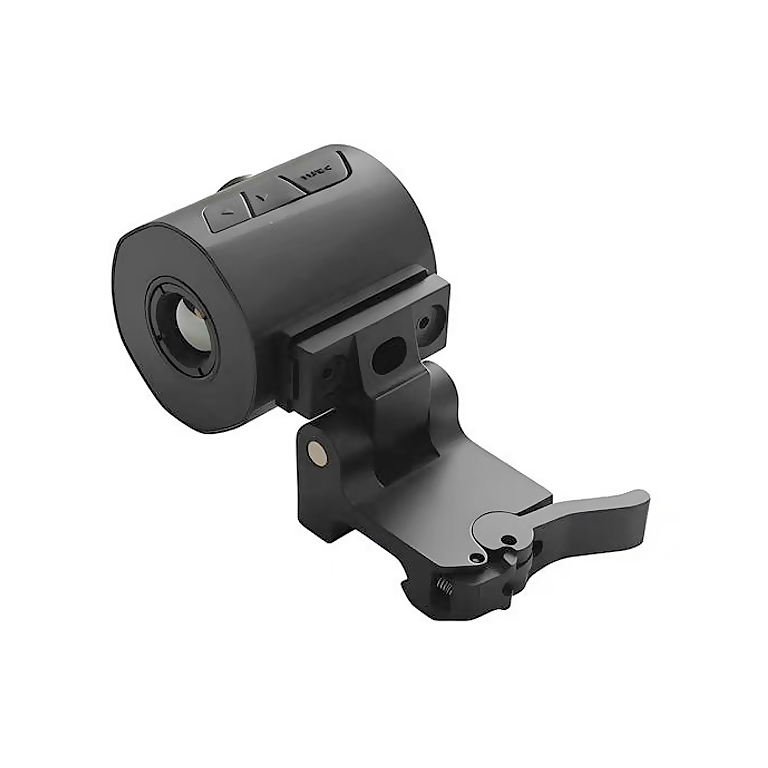

The supplied Acro bracket supports one mounting option, while compatible side-mounted, quick-release, RMR, handheld and helmet brackets are listed as optional accessories. Always confirm that the selected mounting hardware is suitable for the intended equipment before use.
256 x 192 Thermal Imaging System
An uncooled focal plane array provides 256 x 192 thermal resolution with a 12 micrometre pixel pitch, 25 Hz frame rate and an 8 to 14 micrometre response wavelength. The 13 mm F0.9 lens gives a 13.5° x 10.1° field of view, while the manual specifies a detection range of up to 700 m.
Image detail enhancement supports clearer thermal presentation across day and night conditions. Five selectable colour modes - Black Hot, White Hot, Ribbon Red Hot, Green Hot and Iron Red Hot - allow the display to be adapted to the target and viewing environment.
Touchscreen Control and Image Adjustment
The 1.4-inch, 466 x 466 OLED display supports both touchscreen gestures and physical-button control. Swipe left or right to change the thermal colour mode, swipe up to adjust the reticle size and swipe down to change its colour. A double tap changes the zoom level, while the menu provides brightness and contrast adjustment.
Hotspot tracking and bright-light protection can be switched on or off from the menu. The zeroing interface provides horizontal and vertical correction controls for compatible sighting configurations.
Photo, Video and PC Access
Use the dedicated button for photo capture or on-board video recording. A short press takes a photograph, while a long press starts or stops recording. Connect the Type-C interface to a PC to access the device storage, review photos and videos, and manage stored files. Storage capacity is not stated in the supplied manual.
Rechargeable Power and Field-Ready Construction
The S213T uses rechargeable 16340 batteries and is supplied with two batteries. The stated operating time is at least four hours at 25°C. The Type-C interface accepts external DC 5 V power but does not charge the installed battery.
The operating temperature range is -20°C to +50°C, and the device is rated for 1000 g/0.4 ms impact resistance. These stated specifications support use in varied conditions when the equipment is handled, mounted and stored in accordance with the manual.
Specifications
| Specification |
Details |
| Product |
Mini Touch infrared thermal imager |
| Model |
S213T |
| Detector type |
Uncooled focal plane array |
| Thermal resolution |
256 x 192 |
| Frame rate |
25 Hz |
| Pixel pitch |
12 micrometres |
| Response wavelength |
8 to 14 micrometres |
| Lens |
13 mm, F0.9 |
| Field of view |
13.5° x 10.1° |
| Detection range |
Up to 700 m, as stated in the manual |
| Display |
1.4-inch, 466 x 466 OLED touchscreen |
| Colour modes |
Black Hot, White Hot, Ribbon Red Hot, Green Hot and Iron Red Hot |
| Image functions |
Brightness, contrast, zoom, hotspot tracking, bright-light protection and zeroing |
| Media |
Photo capture and on-board video recording |
| Connection |
Type-C for external DC 5 V power and PC storage access |
| Battery |
Rechargeable 16340 |
| Operating time |
At least 4 hours at 25°C, as stated in the manual |
| Dimensions |
52 x 48 x 51 mm |
| Weight |
111 g |
| Operating temperature |
-20°C to +50°C |
| Impact resistance |
1000 g/0.4 ms |
Setup, Use and Care
- Before first use, check the device and all supplied components for damage or missing items.
- Switch the device off before installing or removing a battery, and follow the polarity marking inside the battery compartment.
- Long-press the power button to switch the device on or off. Short-press the power button for shutter adjustment.
- Long-press the touchscreen to open the menu. Use the touchscreen gestures and menu controls to adjust colour mode, reticle, brightness, contrast and other functions.
- Do not point the lens directly at the sun, lasers, welding equipment or other intense heat-radiation sources.
- Do not disassemble, drop, short-circuit or continue using a battery that overheats, changes colour, deforms or produces an unusual odour.
- Keep the device away from dusty or humid environments, heavy impacts and vibration beyond its stated limits.
- Do not touch the optical surface with your fingers. Clean the lens carefully with professional lens paper and wipe non-optical surfaces with a clean, soft cloth.
- For storage, keep the product in a dry, well-ventilated environment free from corrosive gases at 0°C to +55°C and no more than 80% relative humidity.

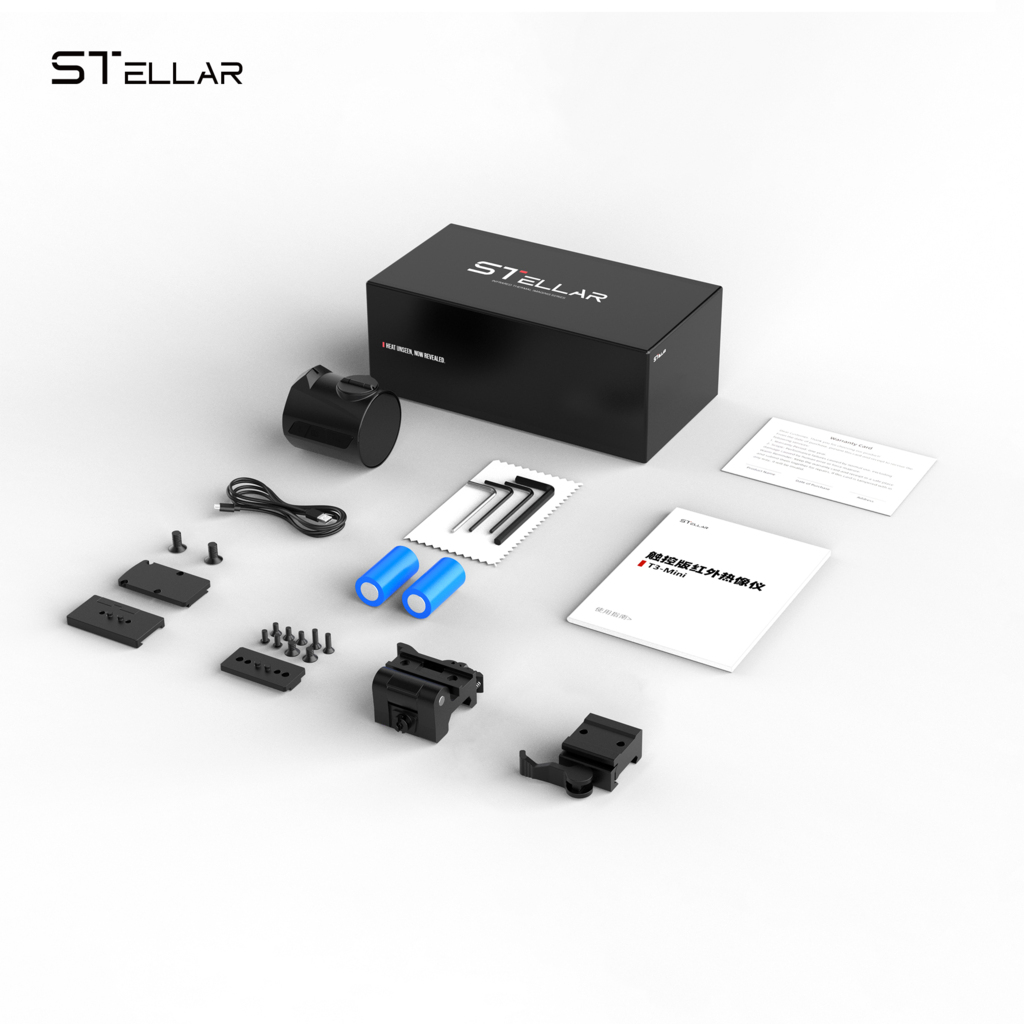

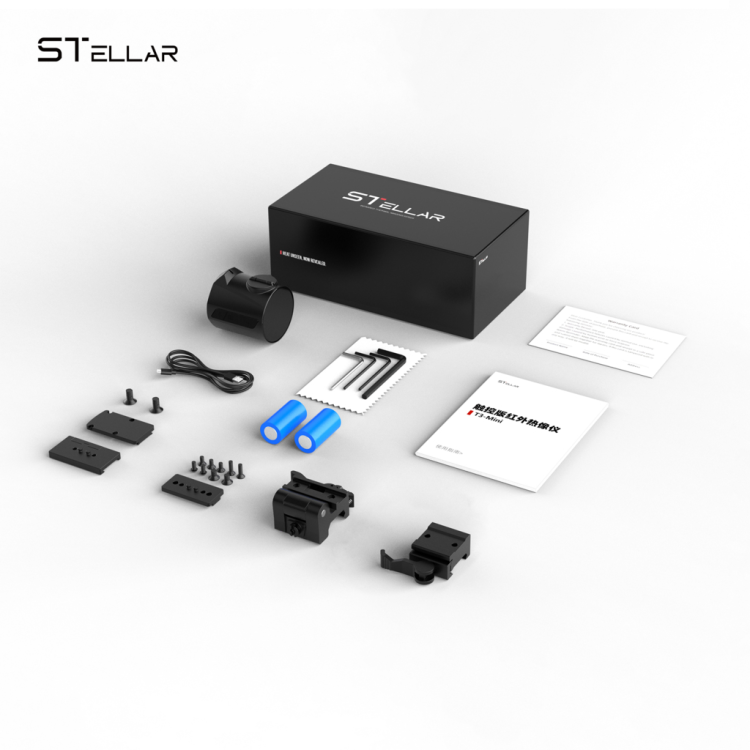

Package Contents
- 1 x Mini Touch S213T infrared thermal imager
- 1 x Acro bracket
- 3 x M3 x 6 countersunk screws
- 1 x Allen wrench
- 2 x rechargeable 16340 batteries
- 1 x Type-C data cable
- 1 x lens cloth
- 1 x instruction manual
- 1 x warranty card
Frequently Asked Questions
Can the Mini Touch S213T be used during the day and at night?
Yes. It forms images from infrared radiation and is designed to reproduce thermal image detail in both day and night conditions.
What is the stated detection range?
The supplied manual specifies a detection range of up to 700 m. Actual detection performance can vary with target size, weather, atmospheric conditions and the surrounding environment.
Does it take photographs and record video?
Yes. A short press of the photo/record button captures a photograph, while a long press starts or stops on-board video recording.
Can the installed battery be charged through the Type-C port?
No. The Type-C connection can provide external DC 5 V power and PC storage access, but it does not charge the installed battery.
Which mount is included?
The standard package includes one Acro bracket. Side-mounted, quick-release, RMR, handheld and helmet brackets are listed as optional accessories.
How many batteries are supplied?
Two rechargeable 16340 batteries are included in the standard package.
