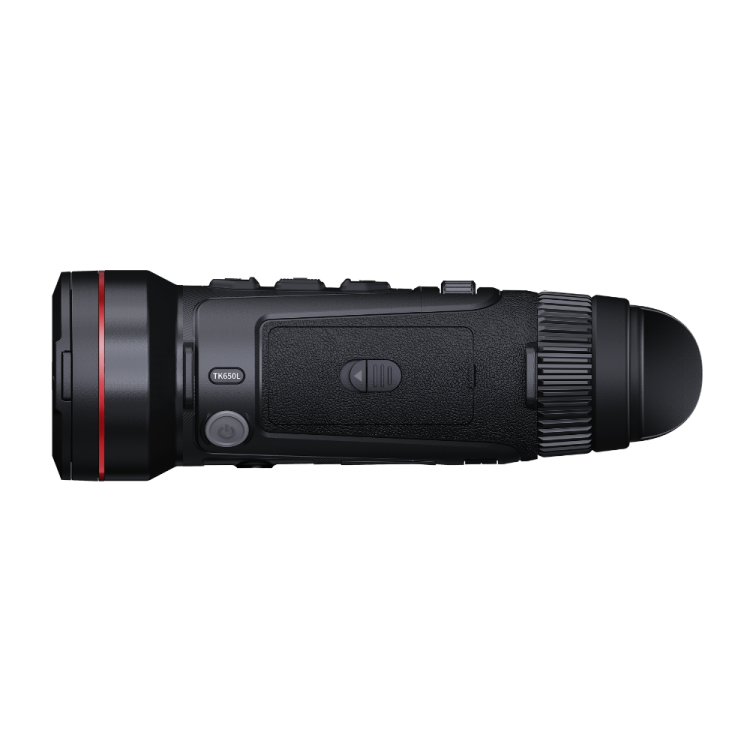

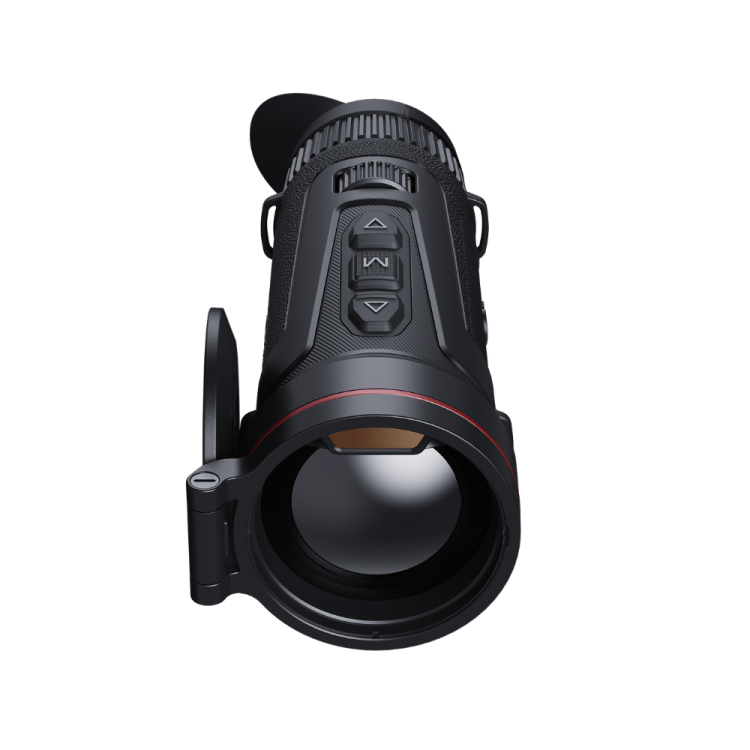

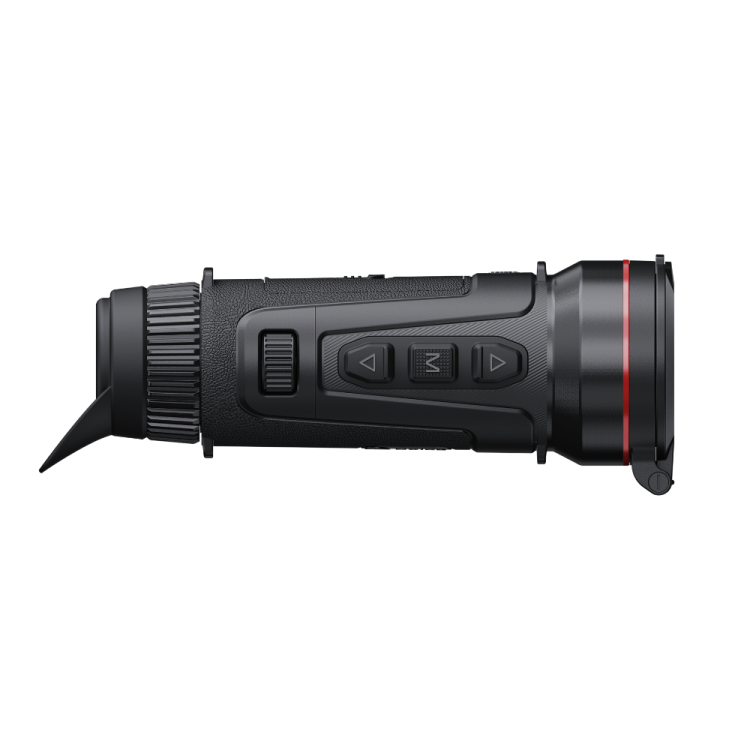

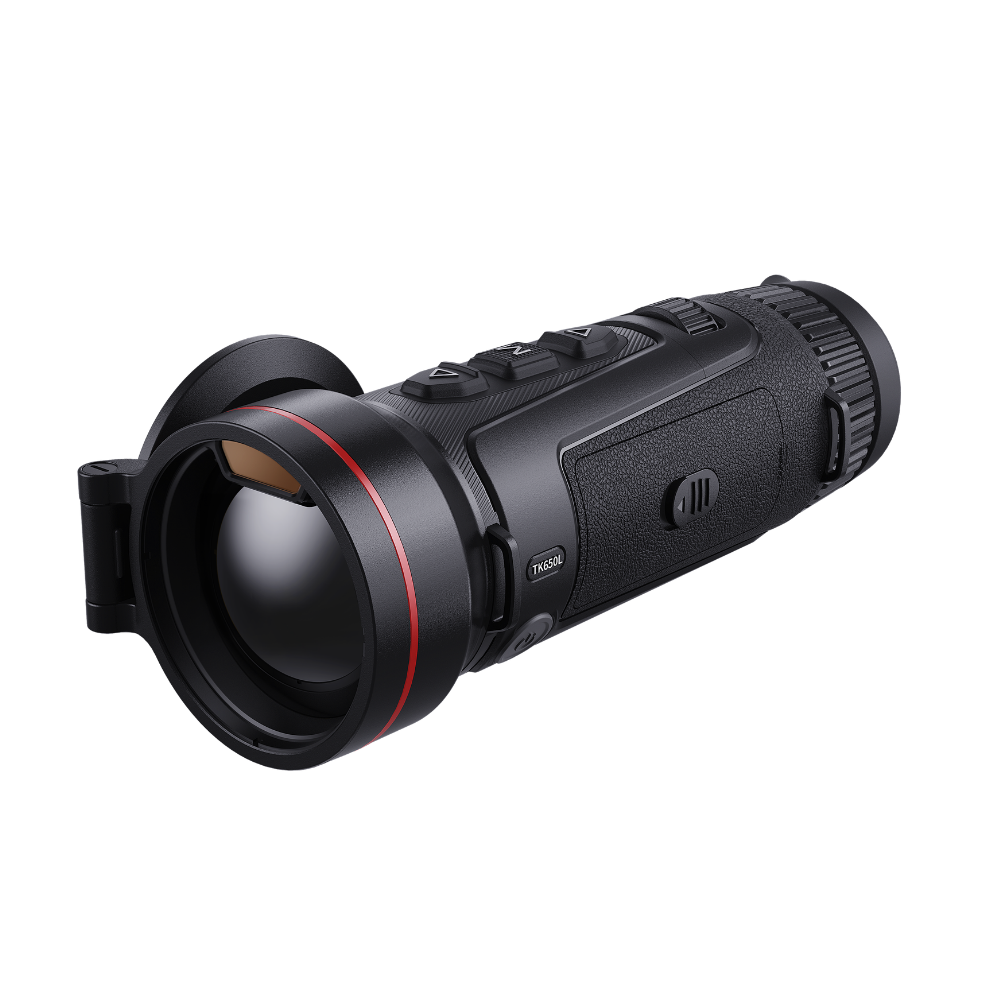

Guide TK650L 3.0 Thermal Monocular with 50mm F0.9 Lens and Laser Rangefinder

Thermal Observation with the 50mm Lens

The Guide TK650L 3.0 is a KODIAK 3.0 thermal imaging monocular for hunting and outdoor exploration. This handheld thermal spotter combines a 50mm F0.9 lens with integrated laser ranging in a body measuring 191 × 67 × 79mm.

The 50mm F0.9 objective gives the TK650L 3.0 a 8.8° × 7.0° field of view, covering 15.4 × 12.3m at 100m. Its 4–32× magnification range supports scanning and closer examination within the same handheld device. Thermal detection extends up to 2600m.

ApexVision Imaging and Shutterless Viewing

ApexVision S1 brings together the ApexCore S1 detector, Nexus 1.0 platform and Hyper-Light 3.0 algorithm. The 640 × 512 uncooled VOx detector has a 12µm pixel pitch and 15mK NETD. A 50Hz frame rate and shutterless 3.0 technology maintain continuous thermal viewing without routine shutter interruptions. Startup takes approximately three seconds.

Integrated Laser Rangefinding

The built-in laser rangefinder measures distances up to 1200m. Thermal detection range and laser ranging distance are separate specifications, so each function has its own stated limit.

AMOLED Display and Recording

View thermal imagery through a 1.03-inch 2560 × 2560 AMOLED display with seven colour palettes. The eyepiece provides 30mm eye relief and dioptre adjustment from -6 to +6. Capture photos and video with audio to 64GB storage; connectivity includes 2.4GHz and 5GHz Wi-Fi, Bluetooth and USB-C.

Handling and Replaceable Battery Power

The symmetrical chassis and physical focus roller support left- or right-handed operation. The TK650L 3.0 weighs 593g with its battery fitted. One replaceable dedicated battery powers the device for approximately 5.5 hours; swapping to the second supplied battery gives up to 11 hours of combined use. The housing is IP67 rated, with an operating temperature range of -20°C to +50°C.

Technical Specifications

Use and Setup

• Fit a dedicated battery, start the monocular and adjust the eyepiece dioptre and focus roller for the observation distance.
• Select the colour palette and magnification required for the scene. Use the integrated laser rangefinder for distance measurement up to 1200m.
• Use the photo or video function to save observations to internal storage. USB-C supports external power and USB 2.0 connectivity.
• For an extended session, change to the second dedicated battery. Use the monocular within its -20°C to +50°C operating temperature range.

Package Contents

Guide TK650L 3.0 thermal imaging monocular;

Hand strap;

Neck strap;

Carry bag;

Lint-free cloth;

Two dedicated batteries;

5V 2A adapter;

USB-A to USB-C cable;

Quick start guide;

Warranty card.

Frequently Asked Questions

What lens and magnification does this model have

The TK650L 3.0 has a 50mm F0.9 objective and 4–32× magnification. Its field of view is 8.8° × 7.0°, equivalent to 15.4 × 12.3m at 100m.

How far can it detect and measure

Thermal detection extends up to 2600m, while the built-in laser rangefinder measures up to 1200m. These figures describe different functions.

How long does each battery last

One dedicated replaceable battery provides approximately 5.5 hours of operating time. Two batteries are supplied for up to 11 hours of combined use, with a battery change between them.

Can the monocular record sound with video

Yes. It records photos and video with audio and has 64GB of internal storage.

Can it be operated with either hand

Yes. The symmetrical housing and physical focus roller support one-handed operation with the left or right hand.
