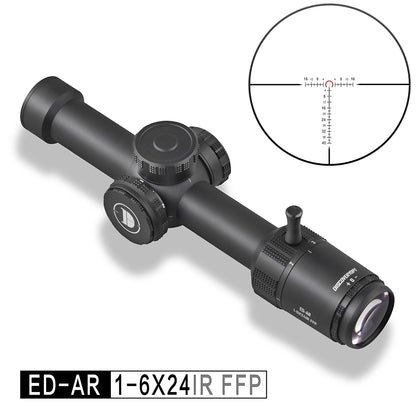

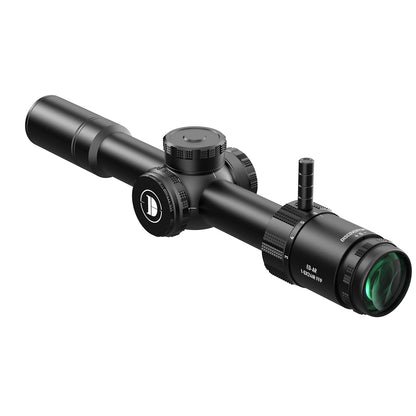

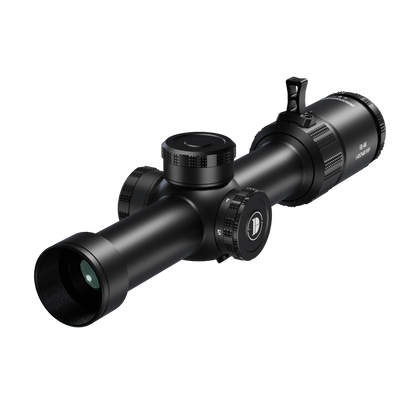

DISCOVERYOPT ED-AR 1-6x24IR FFP-MIL LPVO Rifle Scope

First Focal Plane LPVO for a Flexible 1-6x View

The DISCOVERYOPT ED-AR 1-6x24IR FFP-MIL is a low-power variable rifle scope built around a first focal plane MIL reticle. Its 1x to 6x magnification range provides a broad low-power view at the bottom of the range and a more detailed magnified view at 6x.

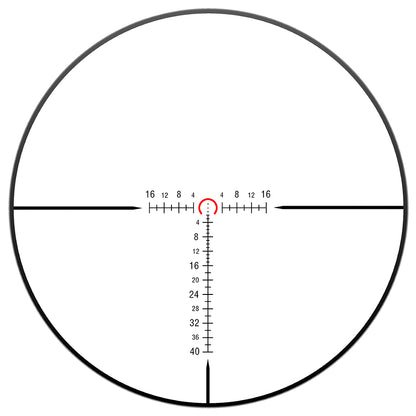

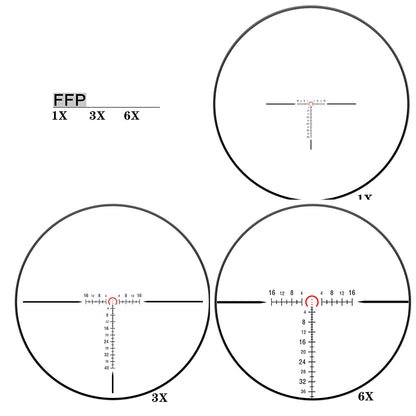

The reticle changes apparent size with magnification, so its subtensions remain proportional throughout the zoom range. This keeps the MIL references consistent as magnification changes.

Red Illumination and MIL Adjustment

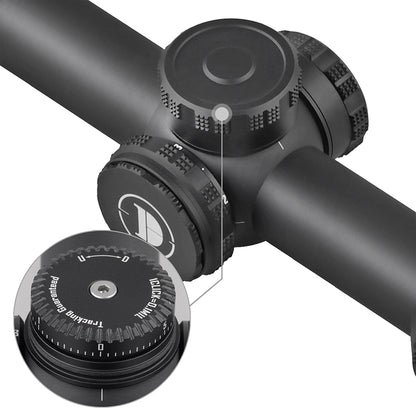

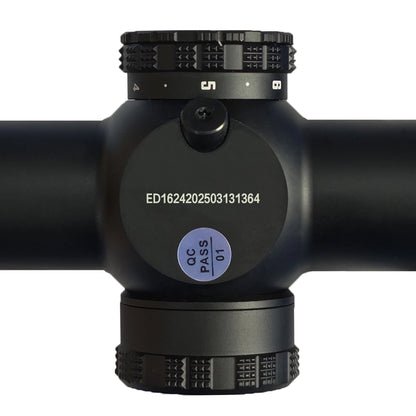

Red reticle illumination offers six brightness settings and uses a CR2032 battery. The scope is built on a 30 mm main tube and uses capped turrets.

For the FFP-MIL variant, each click equals 0.1 MRAD. The manufacturer specifies 35 MIL of elevation adjustment and 19.5 MIL of windage adjustment.

Field of View, Eye Relief and Fixed Parallax

Field of view is stated as 132.3 ft at 1x and 20.5 ft at 6x per 100 yards, equivalent to 40.3 m to 6.2 m. Exit pupil ranges from 13.5 mm to 3.9 mm.

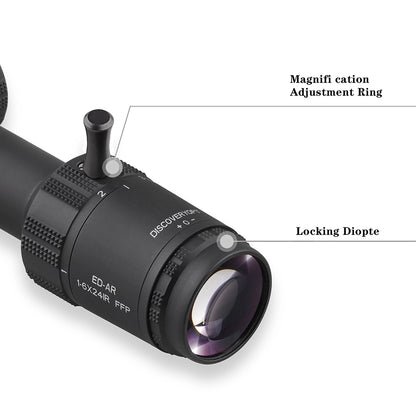

Eye relief ranges from 4.1 in to 3.3 in, equivalent to 10.3 cm to 8.5 cm. Parallax is set at 100 yards. Establish a clear, comfortable sight picture before fine adjustment.

IP67 and Nitrogen-Purged Construction

The scope carries an IP67 waterproof rating and is nitrogen purged for fog resistance. DISCOVERYOPT also states a .50 BMG recoil rating for this model.

Correct installation, closed protective covers and routine optical care remain important for reliable use.

Lifetime Warranty for the ED Series

DISCOVERYOPT lists the ED series under its lifetime warranty. The warranty covers repair or replacement for a product that breaks or malfunctions, subject to the manufacturer's exclusions and claim process.

Registration and proof of purchase are not required according to the manufacturer. Loss, theft, intentional damage and cosmetic damage that does not affect performance are excluded.

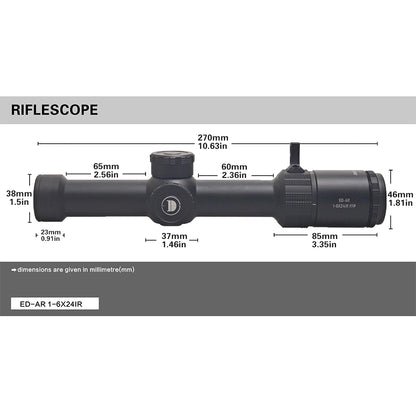

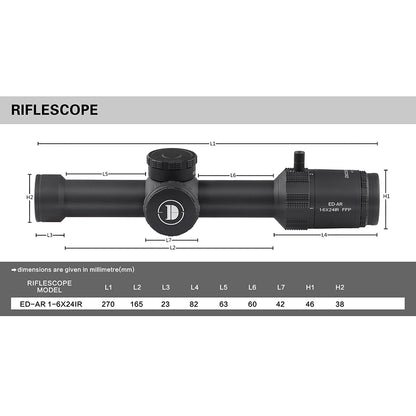

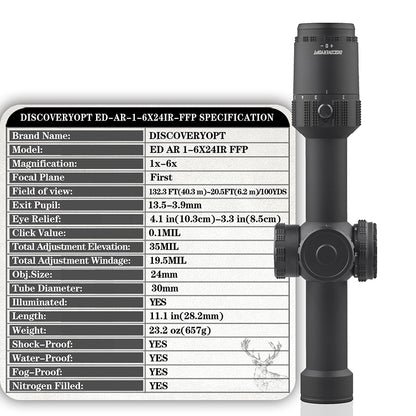

Specifications

Installation, Use and Care

• Use compatible 30 mm scope rings; rings are not included.
• Confirm that the rings, mounting base and fasteners are suitable for the specific equipment before installation.
• DISCOVERYOPT recommends tightening ring screws to 15 to 18 in-lb with a torque wrench and using a cross pattern for even clamping.
• Set the eyepiece focus and magnification for a clear sight picture, then verify the zero in a controlled setting.
• Fit the CR2032 battery with the correct polarity and remove it before extended storage.
• Keep optical surfaces clean with suitable lens-cleaning materials and fit the protective cap when the scope is not in use.
• Follow all applicable equipment, range and firearm-safety procedures.

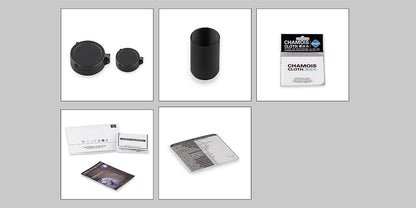

Package Contents

• 1 x DISCOVERYOPT ED-AR 1-6x24IR FFP-MIL LPVO Rifle Scope
• 2 x Spec Cards
• 1 x User Manual

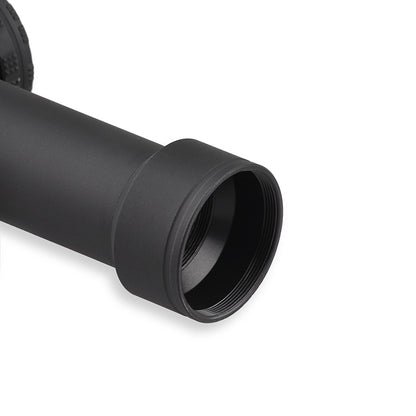

• 1 x Scope Sunshade
• 1 x Lens Cleaning Cloth
• 1 x Warranty Card and QC Card
• 1 x Lens Cap

Scope rings are not included.

Frequently Asked Questions

Is the reticle first focal plane?

Yes. The MIL reticle is positioned in the first focal plane, so its apparent size changes with magnification and its subtensions remain proportional throughout the 1x to 6x range.

What is the click value?

The FFP-MIL variant uses a 0.1 MRAD click value.

What is the parallax setting?

Parallax is fixed at 100 yards.

What size scope rings are required?

The scope has a 30 mm main tube and requires compatible 30 mm rings. Scope rings are not included.

What battery does the illumination use?

The red illuminated reticle uses a CR2032 battery.

Is the scope waterproof and fog resistant?

The manufacturer specifies an IP67 waterproof rating and nitrogen-purged fog protection.

What is included in the package?

The package includes the rifle scope, two spec cards, a user manual, sunshade, lens cleaning cloth, warranty and QC card, and one lens cap. Scope rings are not included.

What warranty applies to this model?

DISCOVERYOPT lists the ED series under its lifetime warranty, subject to the manufacturer's exclusions and claim process.
